| Place of Origin: | Xi'an,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate,SIL3,CE |
| Model Number: | NP-2088GP |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $55.0~$85.0 |
| Packaging Details: | 40*30*30cm Carton |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/pre month |
| Pressure Range:: | -0.1~40MPa | Output Signal: | 0-10V，RS485 |
|---|---|---|---|
| Material: | SS316 | Protection: | IP65 |
| Supply Power: | 24VDC | Accuracy: | ±0.25%F.S |
| Connection: | Thread | ||
| High Light: |
10v Liquid Pressure Sensor,Liquid Pressure Sensor Transmitter,Petroleum Liquid Pressure Transmitter |
||

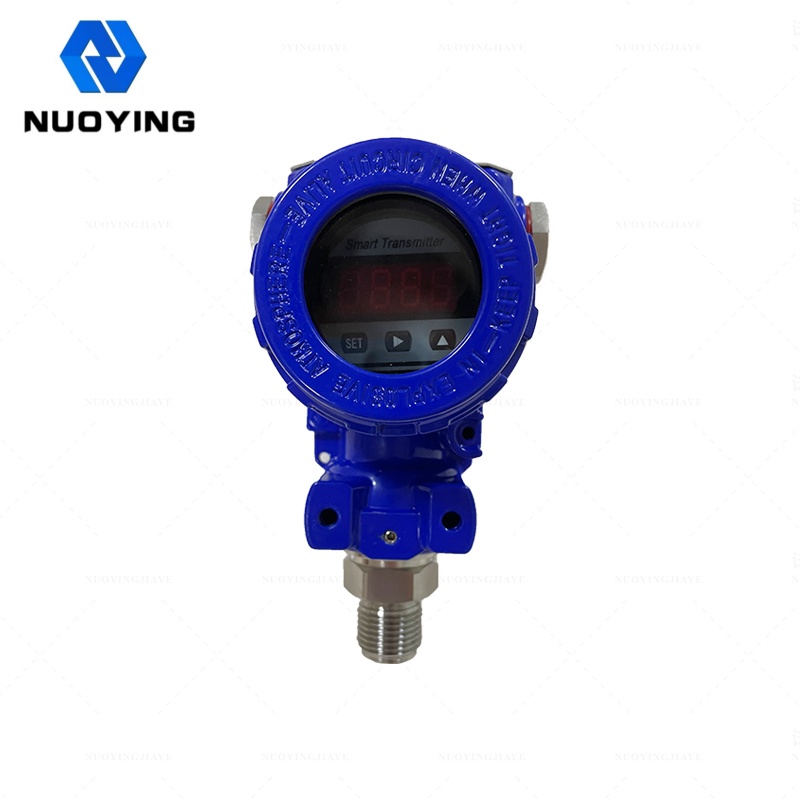

0-10v Liquid Pressure Sensor Transmitter
0-10v Liquid Pressure Sensor Transmitter Description:
0-10v Liquid Pressure Sensor Transmitter series smart pressure transmitter with advanced, mature,it has been designed meticulously by combining advanced microprocessor technology and digital capacitance measurement techniques. Its LCD can display many physical parameters such as pressure, temperature, current. 0-10v Liquid Pressure Sensor Transmitter can be realized zero adjustment, range settings and other features by key-press operation, and easy to on-site tests.
0-10v Liquid Pressure Sensor Transmitter supports HART, Modbus protocol and can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. 0-10v Liquid Pressure Sensor Transmitter can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.
0-10v Liquid Pressure Sensor Transmitter Technical Parameters:
| Basic Parameter | |
| Measure object | Liquid |
| Power | 24VDC |
| 11.9～30VDC (HART; explosion-proof) | |
| Output | Analog:0-10v |
| Load resistant | 0～1500ohm (common) |
| Insulation | Voltage between terminal and housing:500Vrms (707VDC) |
| Display | Optional 6 bits digital number or 5 bits characters LCD display |
| Temperature | Work temperature: -20 ～ 80℃ (without display) |
| -20 ～ 70℃ (with display) | |
| -20 ～ 60℃(explosion-proof IC) | |
| Humidity scale | 5%～95.5%RH |
| Refresh time | 0.1 seconds |
| Dump adjusting | Constant of time 0～15 seconds |
| Performance Specification | |
| Precision | ±0.075% of the select range. If the select range <1/10 maximum of the range, the precision is ±[0.025+0.005× (maximum range/select range)]% of select range |
| Temperature Effect | Effect of every change of 28℃ (50℉) |
| Select range ≥0.1 maximum range:±[0.019% of maximum range +0.125% of select range] ; | |
| Select range ＜0.1 maximum range:±[0.025% of maximum range+0.125% of select range]. | |
| Long Time Stability | In 12 months, ±0.1% of maximum range |
| Location Installed Effect | The maximum of the zero point movement is 0.24kPa |
| Power Effect | < 0.005%/V of range calibrated |
| Proof Level | IP65 |
0-10v Liquid Pressure Sensor Transmitter Features:
