Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate,SIL3,CE |
| Model Number: | NP-93420III-GP |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $95.0~$185.0 |
| Packaging Details: | 40*30*30cm Carton |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/pre month |
| Pressure Range: | -700kpa~700kpa | Output Signal: | 4-20mA/HART/RS485/0-5V |
|---|---|---|---|
| Supply Power: | 9-36VDC | Thread Connection Type: | 1/2 Or 1/4npt |
| Accuracy: | ±0.25%(Typical) ±0.5%(Max.) | Medium Temperature: | -40 ~ 85 ℃ |
| Material: | 316SS | Warranty: | One Year |
| High Light: | 5v Pressure Sensor Transmitter,HART Pressure Transmitter 700kpa,700kpa Smart DP Transmitter |
||

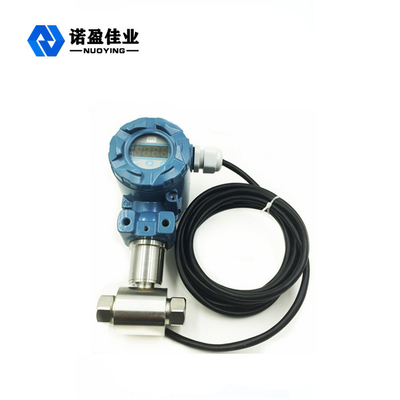

0-5v Smart Differential Pressure Transmitter For Pressure Transducer
0-5v Smart Differential Pressure Transmitter For Pressure Transducer Description:
0-5v smart differential pressure transmitter for pressure transducer is a typical self-balancing instrumentation, which uses the working principle of negative feedback to overcome the components of materials, processing and other unfavorable factors.
As the name implies differential pressure transmitter measured the result is the pressure difference, that is, P = ρg h. However, since the tank is often cylindrical, the area S of the cross-section circle is constant. Then, the gravity G = P · S = ρg h · S, S is constant, and G is proportional to P. That is, as long as the P value is accurately detected, it is proportional to the height Δh. When the temperature changes, the detected pressure is always maintained although the oil volume expands or contracts, and the actual liquid level increases or decreases. If you need to display the actual level, you can also introduce media temperature compensation to be resolved.
0-5v Smart Differential Pressure Transmitter For Pressure Transducer Specification:
Measuring medium: liquid or gas
Pressure mode: differential pressure
Output signal: 4-20mA, RS485, 0-5V, 0-10V, 1-5V
Power supply: 12-36VDC
Working conditions
Medium temperature: -40 ~ 85 ℃
Ambient temperature: -40 ~ 85 ℃
Humidity:0% ~ 95%
| Measuring Rang | Differential Pressure: 0~1Kpa, 6Kpa, 40Kpa, 200Kpa......2Mpa, 8Mpa |
| Gauge Pressure: 0~40Mpa | |
| Absolute Pressure | 0~40Mpa |
| Turn Down Ration | 40:1 |
| Application | Different Pressure, Gauge Pressure, Absolute Pressure |
| Accuracy | ±0.1, 0.3, 0.5% of Span |
| Process Fluid | Liquid, Gas, Vapor |
| Temperature Drift | Zero Drift: 0.5%FS/50℃ |
| Span Drift:0.7%FS/50℃ | |
| Stability | ±0.1%/year |
| Working Temperature | -40℃ ~ 100℃ |
| Ambient Temperature | -40℃ ~ 85℃ |
| Storage Temperature | -40℃ ~ 100℃ |
| Power Supply | 9~45V DC |
| Output | 4~20mA 2 wires Hart Protocol |
| Max Pressure | 40Mpa |
| Respond Time | 200ms |
| Humidity Limits |
