| Place of Origin: | Xi'an,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,SIL3 |
| Model Number: | NT-93420-IV |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | $25.0~$55.0 |
| Packaging Details: | 30*30*30cm Carton |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/pre month |
| Media: | Air/Water/refrigerate Liquid | Application: | Hydraulic And Pneumatic |
|---|---|---|---|
| Accuracy: | 0.5%FS | Output Signalwire: | 4-20mA,0-10V,2wire |
| Power Supply: | 10~30VDC | Operating Temperature: | -10~80℃ |
| Process Connection: | G1/4 | ||
| High Light: | 30V Air Compressor Pressure Sensor,Pressure Sensor Transmitter Hydraulic,Hydraulic Water Pressure Transmitter |
||

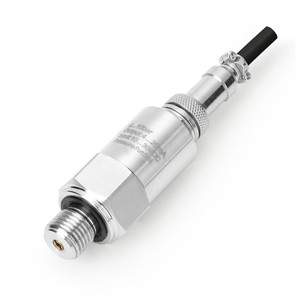

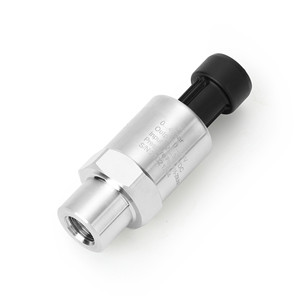

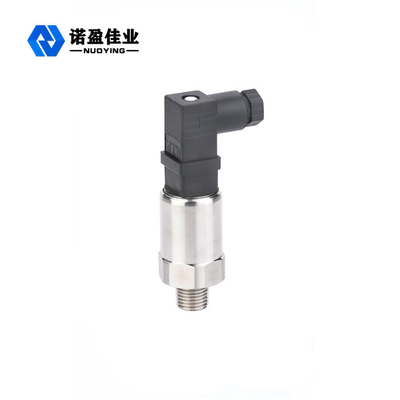

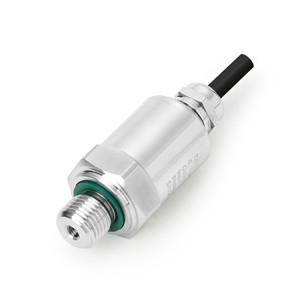

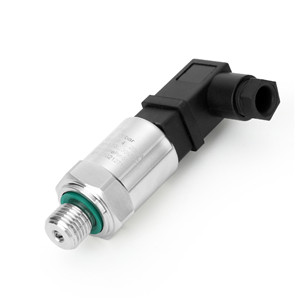

4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter
4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter Description:
4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter is a ceramic pressure sensor that is temperature compensated and laser trimmed for accurate span and offset calibration. The typical advantage is the compact size, which make it convenient to be installed in small room.
Output: A4=4~20mA; V05=0.5~4.5V; V0=0~5V; V1=1~5V; V10=0~10V
Measurement range
Unit of measure: K=kPa; M=MPa; P=psi; B=bar
Accuracy: 0.5=0.5%F.S; 1=1.0%F.S
Electrical connector: P=Packard; D=Din43650C; M=M12; C=Cable
Pressure connection: G=G1/4; N=NPT1/4; R=R1/4; U=7/16-20UNF; M=M20×1.5; N2=NPT1/2; G2=G1/2; R2=R1/2
Cable length(m)
4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter Parameters:
| General | Value | |||
| Measurement Range | -1~0......100bar,0~2......3bar,0~4......60bar(normal range),0~61......600bar | |||
| Overload Pressure | 1.5 times of full scales | |||
| Burst Pressure | 3 times of full scales | |||
| Accuracy | ±0.5%F.S,±1.0%F.S | |||
| Long Term Stability | Typical value: 0.5%F.S Maximum: 1%F.S | |||
| Working Temperature | -40℃~100℃ | |||
| Compensated Temperature | -10℃~80℃ | |||
| Storage Temperature | -50℃~125℃ | |||
| Medium Compatibility | All corrosive medium compatible with 1Cr18Ni9Ti stainless steel and ceramic | |||
| Output Mode | Two-wired | Three-wired | ||
| Output | 4~20mA | 0.5~4.5V | 0/1~5V | 0~10V |
| Power Supply | 10~30VDC | 5VDC | 10~30VDC/AC | 12~30VDC/AC |
| Load Resistance | (U-10)/0.02(Ω) | >100K(Ω) | ||
| Insulation | >100M(Ω)@50V | |||
| Electrical Connection | Packard, DIN43650C, DIN72585, M12, Cable | |||
| Protection Grade | IP67 | |||
| Pressure Connection | Male G1/4,NPT1/4,7/16-20UNF,M20×1.5,G1/ | |||
| (Female and other connection is available on request) | ||||
| Response Time | 10ms | |||
| Pressure Form | Gauge pressure | |||
| Electromagnetic Compatibility | Electromagnetic transmit: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2 | |||
