| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NT93420-130 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $120 to $1300 |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 300 pcs/ pre month |
| Measuring Range: | -200 〜+1600 °C | Accuracy: | ±1.5C |
|---|---|---|---|
| Wire Material: | Platinum Rhodium | Model Number: | Thermocouple |
| Wire Diameter: | 0.2-0.5mm Or Customized | Tube Diameter: | 8/10/16/22/25mm Or Customized |
| Key Words: | Probe Thermocouple | Warranty: | 1 YEAR |
| High Light: | 1200c Temperature Transmitter Sensor,K Type Thermocouple Transmitter 0.5mm,1200c thermocouple temperature transmitter |
||

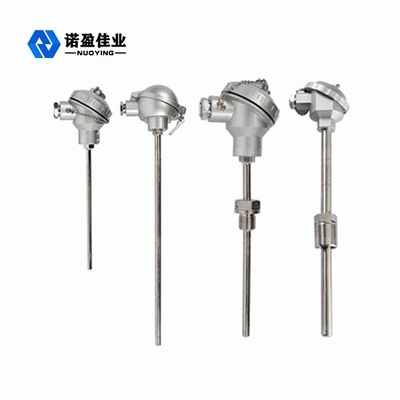

NT93420 Temperature Transmitter Sensor
thermocouple as measure temperature sensor, and usually display meter, recording meter and electronic regulator, at the same time, also can be used as a prefabricated thermocouple temperature sensing element, it can be directly measured from 0 ℃ ~ 800 ℃ in the process of various production within the scope of the liquid, steam and gas medium, as well as the temperature of the solid surface.
Technical Parameter
| Size | Type | length | Temperature | Material | thread |
| NT93420-130 NT93420-230 |
K | L=300 | 0-1200℃ | SS304 | M27*2 |
| L=400 | |||||
| L=500 | |||||
| L=600 | |||||
| L=700 | |||||
| L=800 | |||||
| L=900 |
※ Note: Products can be customized according to the specific requirements of users!

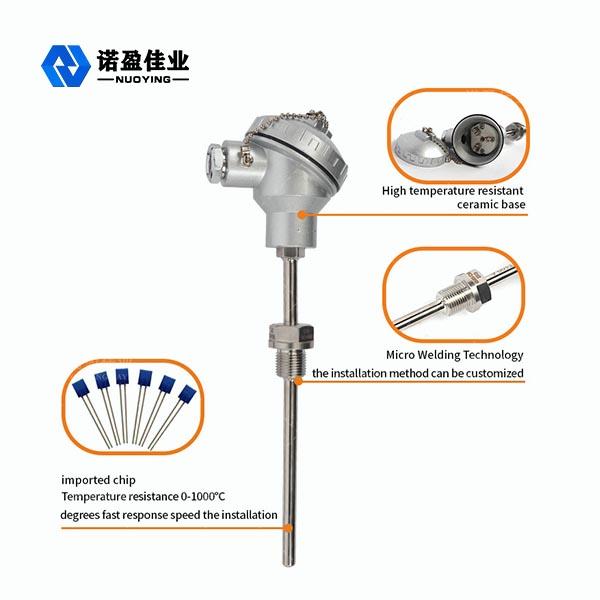

NT93420 Temperature Transmitter Sensor Advantage
- Size: WRN-130 (Without thread) ,WRN-230 (M27*2 thread)
- Tube diameter:16mm (6-20mm diameter can be customized)
- Wire diameter:1.5mm (Stander size,can be customized)
- Stainless steel protective tube:SS304
