| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYSP-Z18 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $450 to $1700 |
| Packaging Details: | Export standard packing |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Applications: | Insulative Solid, Insulating Liquid | Probe Type: | Non-insulated Flexible Cable |
|---|---|---|---|
| Measuring Range: | 0~30m | Process Connection: | Screw Thread, Flange(optional), |
| Protection Grade: | Display Instrument IP67, IP67 | Operating Temperature: | -40～150℃ |
| Signal Output: | 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) | Power Supply: | （13-35）vDC |
| High Light: | 13vDC RF Admittance Level Transmitter,Non Insulated Level Transmitter 4-20mA,13vDC HART Level Transmitter |
||

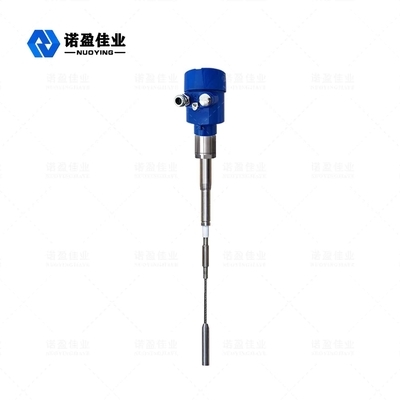

NYSP-Z18 Rf Admittance Level Meter
The NYSP-Z17 Rf admittance level meter is based on the principle of radio frequency admittance level measurement products continuously.The product has high stability, high sensitivity and wide applications, etc.Compared with the traditional capacitive material level meter, the use of modular design, can be concise and easily realize the instrument set, once set, can be normal use and free maintenance for life.Enables users to intuitive understanding of the running status of equipment, and deal with the problems in time, in the complex industrial occasions as well as safe and reliable.
Rf Admittance Level Meter Technical Parameter
| Applications | Insulative solid, insulating liquid |
| Probe type | Non-insulated flexible cable |
| Measuring Range | 0~30m |
| Process temperature | -40～150℃ |
| Ambient temperature | -40 ℃ ~ + 70 ℃ |
| Storage temperature | -20 ℃ ~ + 65 ℃ |
| Process pressure | -0.1～8.0MPa |
| Power supply | (13-35)vDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process connection | Thread/Flange(selective) |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6(selective) |
| Delay: | 0 ~ 30 s adjustable |
※ Note: Products can be customized according to the specific requirements of users!
Rf Admittance Level Meter Design Features
◎ The unique Driving - shields circuit design can improve the ability to resist hanging
◎ No dead zone measurement, can be applied to more than ten or even a few cm level measurement occasions
◎ The output of the stable and reliable, fly ash, blanking, water vapor, crystallization, wax
◎ No activities, no easy worn parts, often without cleaning and maintenance, debugging
Rf Admittance Level Meter Installation requirements
Note:
- Probe measurement part cannot run into the tank wall, is apart from the tank wall distance is greater than 600 mm as well.
- When the tank has a strong stirring, should place the probe bottom fixed and to probe from blender to ensure safety.

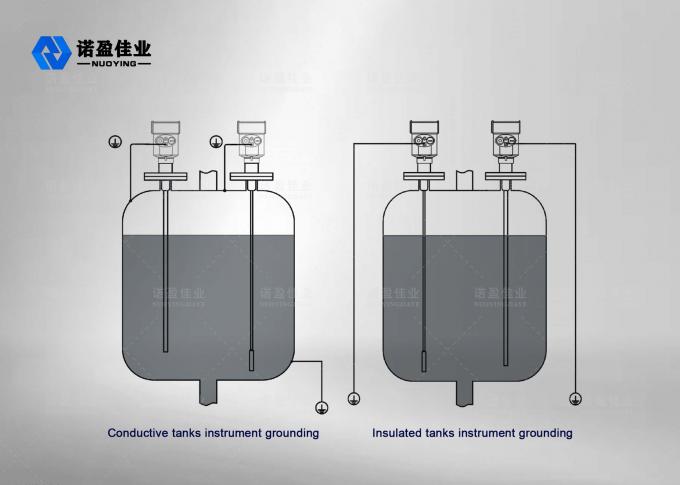

- The instrument must be reliable grounding.
- Probe cannot be installed on the filling mouth (or channel) or other materials directly through the place.If unable to do this, it is the probe to add partition between filling mouth (or slots).
- Instrument installed hard pole probe must be considered when space.Cable type probe after installation to straighten, avoid short circuit with tank wall.
- The installation must be very careful, don't damage the probe insulation layer.Probe center side and shielding layer and installation interface or contact with the walls, and avoid the probe in use process and installation interface, the container wall, material and other mechanical wear and tear.
- Instrument convenient cannot have water, otherwise it will endanger the instrument electronic unit.
