| Place of Origin: | China |
|---|---|
| Brand Name: | Nuoying JIAYE |
| Certification: | Explosion proof certificate |
| Model Number: | NYCSUL-501 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 1USD - 900USD |
| Packaging Details: | 30cm×25cm×20cm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300 sets a month |
| Shell Material: | Polypropylene | Display: | LCD |
|---|---|---|---|
| Setting Output: | Upper Limit Setting, Lower Limit Setting | Display Mode: | Liquid Level, Distance (empty Height) |
| Signal Output: | 4...20mA/HART/RS485... | Process Connection: | Thread, Flange, Bracket Mounting (optional) |
| Process Pressure: | Normal Pressure | Process Temperature: | （-20-70℃） |
| High Light: | 1mm Ultrasonic Open Channel Flow Meter,Open Channel Flow Meter LCD display,LCD display open water flow meter |
||

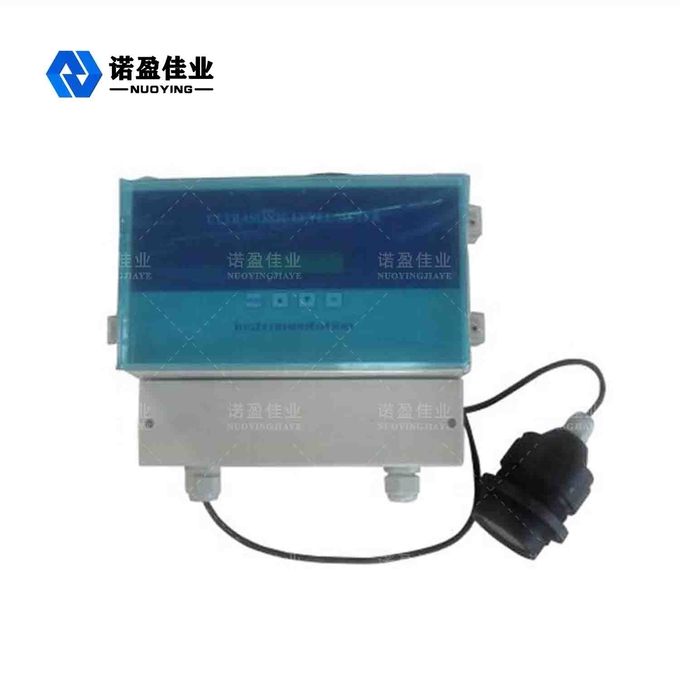

River Flow Measurement Ultrasonic Open Channel Flow Meter
Ultrasonic Level Transmitter
A pure ultrasonic open channel flow meter
Open channel flow meter using a common type of open channel flow measurement methods, including the use of hydraulic structures, such as weir or sink. Flow measurement into reservoir is a common application in which open channel flow measurement plays a role. When the liquid flow in a pipe or channel with free surface, open channel flow occurs.
Ultrasonic Level Transmitter Technical Parameters
| Measuring range | Dead zone | Range accuracy | Pressure |
| Parshall trough universal type | 0.25-0.5m | ±3mm/0.3%( standard conditions ) | 3 atmospheres below |
| Meter type | Range resolution ratio |
Environment temperature | Meter display |
| split type | 1mm | -20℃~+60℃ | Built-in LCD display level or space distance |
a set of 4-20 ma analog output
RS - 485 communication (Modbus RTU protocol) (optional)
IP65 protection class
ac 220 v and 24 v dc power supply (optional)
installation: split type, instrument hanging installation
sensor material: ABS plastic (PE/PTFE anti-corrosion material optional)
sensor with 10 m line (can be extended to 50 m)
