| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYZX |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $100 to $380 |
| Packaging Details: | 80cm×17cm×24cm |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 400 pcs/ pre month |
| Probe Rod Length: | 200mm (customizable As Required) | Power Supply: | 24VDC, 220VAC (optional) |
|---|---|---|---|
| Material: | 304，316 (optional) | Process Connection: | Thread, Flange (optional) |
| Process Pressure: | 0~ 1.6MPa | Operating Temperature: | -40 - +80 °C (> +80 °C Customizable) |
| Protection Grade: | IP67 | Explosion-proof Grade: | Exia IICT6 (optional) |
| High Light: | 220VAC Rotary Paddle Level Switch,Multiple Blade Rotary Paddle Sensor,220Vac level switch paddle type |
||
NYZX Resistive Level Switch
NYZX Resistive Level Switch Operating Principle

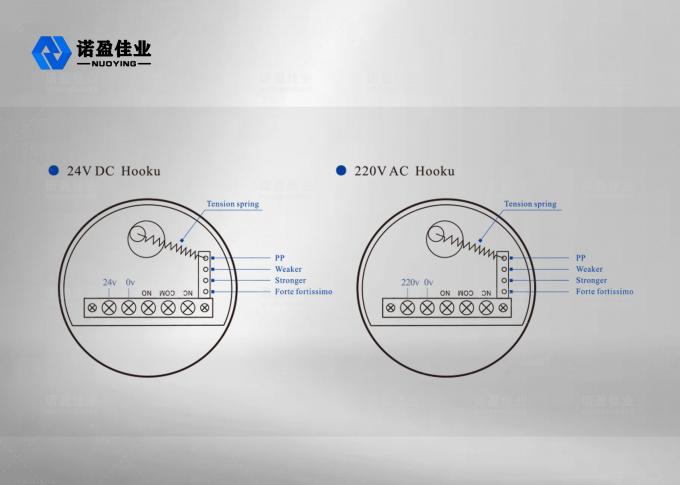

The NYZX series resistive material level switch is a device that uses permanent magnet motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detecting device in the junction box. The detecting device outputs a switch signal outward and cuts off the power to stop the blade from turning. When the material level drops, the blade resistance disappears, and the testing device returns to its original state by relying on the spring's pulling force, and adjusts the spring's pull force according to the specific gravity of different materials. When the specific gravity is large, the spring tensile force is adjusted to be strong or strongest. On the contrary, adjust to weak or weakest.
NYZX series resistive level switch is used to detect solid material (powder, particle) level control equipment, widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.
NYZX Resistive Level SwitchTechnical Parameter
| Applications | powder, small particle level control |
| Bar material | 304,316 (optional) |
| Probe length | 200mm (customizable as required) |
| Power supply | 24VDC,220VAC (optional) |
| Process temperature | -40 - +80 °C (> +80 °C customizable) |
| Process pressure | normal pressure,0~ 1.6MPa |
| Process connection | thread, flange (optional) |
| Dielectric density | N 0.4g/cm3 |
| Insulation impedance | N 100MKQ (500VDC) |
| Dielectric strength | 1500V lmin |
| Contact capacity | 250V 5A (SPDT) |
| Moment | 10kg*m (lN*m) |
| Power | 3.0W |
| Electrical interface | 3/4 nNPT |
| Shell material | Aluminium (optional) |
| Level of protection | IP67 |
| Anti-hazard classification | Exia II CT 6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
- Unique oil seal design can prevent dust infiltration along the axis;
- The motor of the imported resistive rotary switch is reliable, and the double seal bearing can guarantee the continuous operation for a long time;
- Simple structure and convenient installation;
- Stable and reliable, and the size of the torque can be adjusted;

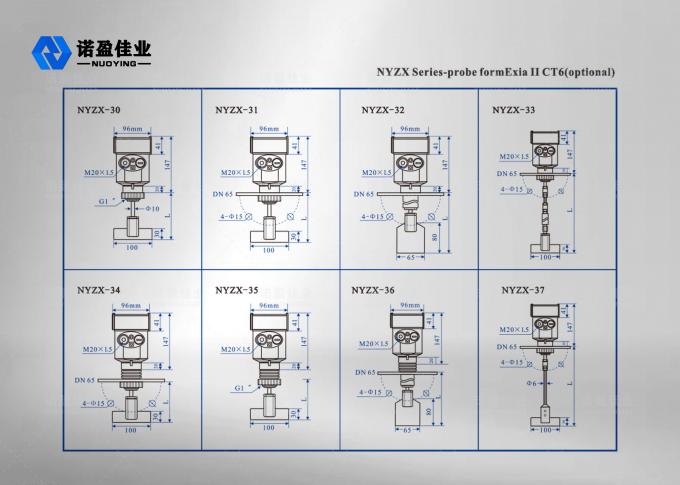

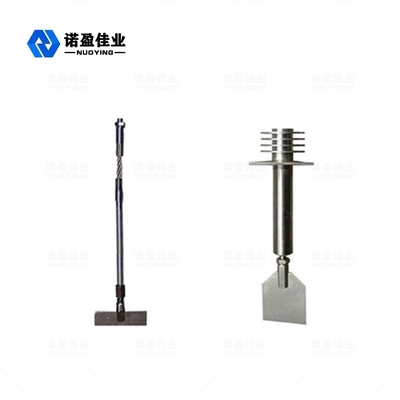

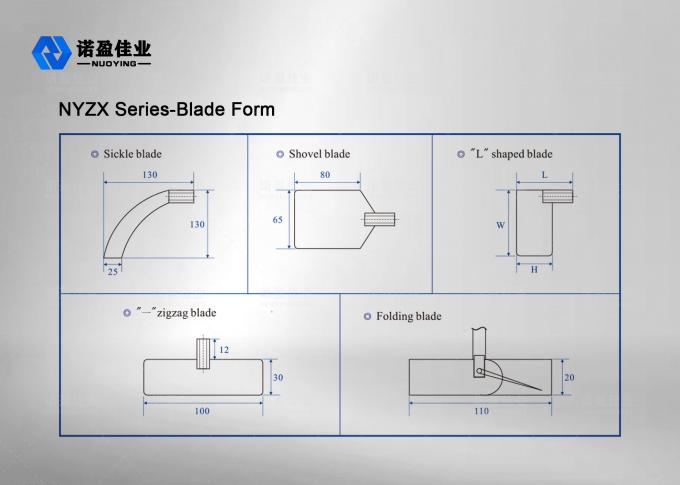

- A variety of probe forms can be used in different situations;
- Large output contact capacity.
NYZX Resistive Level Switch Installation requirements
- Before installation, please confirm whether the power supply voltage is consistent with the voltage on the label.
- Resistance spin material level switch should avoid installation in the feed mouth, when unavoidable can be added to protect the blade from material impact.
- Horizontal installation, junction box inlet should be vertical downward, cable fixing nut must be locked, if possible, can add rain cover, etc.
- Before installation, confirm horizontal installation or vertical installation.
- When installed horizontally, the blade is installed at an Angle of 10~20° to reduce the impact of materials.
