Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NuoYingJiaYe |
| Certification: | CE |
| Model Number: | NYCSUL-N |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $100 to $1300 |
| Packaging Details: | standard |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Product Name: | Ultrasonic Mud Water Interface Instrument | Range: | 5m,10m |
|---|---|---|---|
| Accuracy: | ±1%FS | Resolution: | 1mm |
| Process Temperature: | 0℃～＋60℃ | Ambient Temperature: | －20℃～＋60℃* |
| Power Supply: | 24VDC | Length Of Probe Cable: | 10 Meters (lengthening To 60 Meters) |
| High Light: | Ultrasonic Mud Water Interface Instrument,Mud Ultrasonic Level Transmitter,24VDC Ultrasonic Liquid Level Sensor |
||

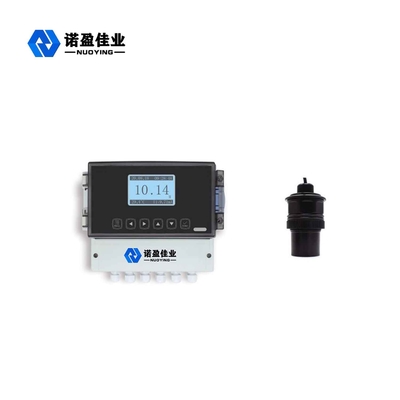

Ultrasonic Mud Water Interface Instrument
Features of Ultrasonic Mud Water Interface Instrument
- It can show mud position, distance, echo waveform and historical curve.
- Automatic detection of electrical interference on site and interference suppressio.
- Internal integrated temperature sensor, real-time temperature compensation for sound speed.
- Provide alarm current output to prevent mud from entering blind area or beyond range.
- It has 4 to 20mA current simulation, mud level simulation, RS485 communication test and so on.
- With built-in keys, you can set parameters on site, and remote parameters can be set through RS485.
- It can be shown in both English and Chinese. You can also choose rice and feet.
- All input and output lines have overvoltage and overcurrent protection.
- Non-contact measurement, long life.
Technical Parameter of Ultrasonic Mud Water Interface Instrument
|
Type Content |
four-wire system/Split type |
| Measuring range | 0～5m,0～10m |
| Dead band | Less than 0.5m,Less than 0.8m |
| Accuracy | ±1%FS* (Standard condition *) |
| Resolution | 1mm |
| Beam angle | Angle 12 degrees |
| Instrument display | Display of mud position, distance, current, echo waveform and historical curve in Chinese and English. |
| Power supply | DC12V～36V/30mA or AC85V～265V/5W |
| Analog output | 4～20mA/bit12 current output, load less than 500 ohms |
| Digital output | RS485 / Modbus-RTU protocol(HART 5.0 can be selected) |
| Switch output | 2～4,contact power 3A 250VAC / 5A 30VDC |
| Instrument material | ABS |
| Probe material | 304 Stainless steel |
| Electrical interface | PG11 |
| Process interface | G3/4 or G2 |
| Ambient temperature | －20℃～＋60℃* |
| Process temperature | 0℃～＋60℃ |
| Waterproof grade | Instrument :IP65 / Probe :IP68 |
| Depth of draught | Not less than 0.5m |
| Length of probe cable | 10 meters (lengthening to 60 meters) |

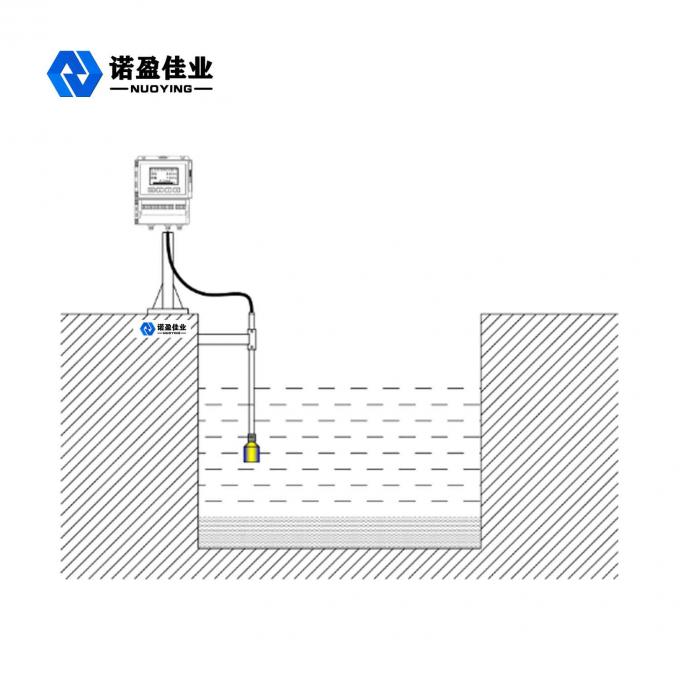

Application of Ultrasonic Mud Water Interface Instrument
The maximum measuring distance of the instrument is 10 meters.
Note: the maximum measurement distance of the mud interface gauge is influenced by turbidity and sludge interface reflectivity.
