| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYCSUL |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $450~$1700/pc |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/month |
| Typical Application: | Liquid (no Stirring, Volatilization, Etc.) | Product Models: | Nycsul-501, NYCSUL-502 |
|---|---|---|---|
| The Probe Type: | Body, Split Body, Anti-corrosion, Anti-corrosion And Explosion-proof | The Antenna Form Material: | PP, PVC, PTFE, 304（optional） |
| Accuracy Of Measurement: | <0.5% (range >20 M) | Process Pressure: | -0.1 ~=0.1 MPa |
| Process Connection: | Thread | Explosion-proof Grade: | Exia II CT6 Ga, Exd II CT6 Gb |
| High Light: | 24VDC Intelligent Ultrasonic Level Gauge,Liquid Ultrasonic Level Gauge NYCSUL |
||

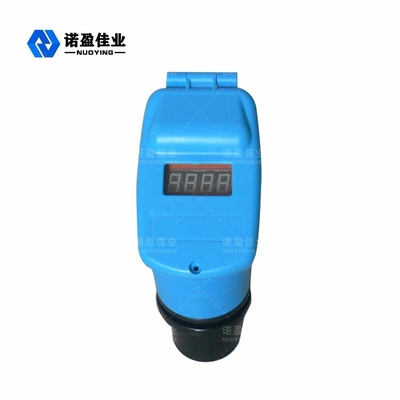

24VDC Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
The working Principle of 24VDC Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
NYCSUL two-wire ultrasonic level gauge is an intelligent non-contact level measuring instrument. The product has automatic power adjustment, gain control, temperature compensation, adopts advanced detection and calculation technology, and has the function of suppressing interference signals, thereby fundamentally improving the measurement accuracy of the instrument and ensuring the authenticity of the measurement results. The product can be widely used for liquid level measurement of various liquids, and can also be used for distance measurement.
Design feature of 24VDC Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
◎ reasonable design, excellent performance, simple structure, convenient installation, etc
◎ small angle probe is adopted for ultrasonic wave, with large transmission power and high sensitivity
◎ upper and lower limit setting and alarm setting at any point, can be used for continuous liquid measurement and liquid level control
Technical parameters of 24VDC Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
| Typical application | Liquid (no stirring, foam, volatilization, etc.) |
| Product models | Nycsul-501, NYCSUL-502, NYCSUL-503 |
| The probe type | Body, split body, explosion-proof, anti-corrosion, anti-corrosion and explosion-proof |
| The antenna material | PP, PVC, PTFE, 304 |
| Measuring range | 0~ 20M (integrated), 0~40m(separate), |
| Accuracy of measurement | <0.25% (range <20 m), <0.5% (range >20 m) |
| The process temperature | 3M, 20M (deep well can measure several hundred meters, which can be customized as well) |
| Accuracy of measurement | 0.05% ~ 0.1% F. S |
| The process temperature | -20~+70C |
| Process pressure | -0.1 ~=0.1 MPa, (atmospheric pressure) |
| Electrical Interface | M20×1.5,½"NPT |
| Protection class | IP65, IP67, IP68(optional) |
| Process connection | Process connection |
| Display mode | Liquid level, distance (air height) |
| Set the output | Upper limit setting, lower limit setting |
| Signal output | 4... 20mA/ HART/ RS485/Modbus. . . |
| Protection grade | IP65, IP67, IP68(Optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb(see certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
