Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD806 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $597.192/pcs |
| Packaging Details: | Carton,60cm*30cm*30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Product Model: | NYRD806 | Antenna Type: | Horn Type |
|---|---|---|---|
| Antenna Material: | 304 | Measuring Range: | 0~30m |
| Measurement Accuracy: | 0.05%~0.1% F. S | Process Pressure: | - 0.1~2.0MPa |
| Process Connection: | Thread, Bracket, Flange, Sanitary Clamp (optional) | Electrical Interface: | M20×1.5, 1/2"NPT |
| High Light: | NYRD806 Radar Level Meter,26G High Frequency Radar Level Meter,Small Blind Zone Radar Level Sensor |
||

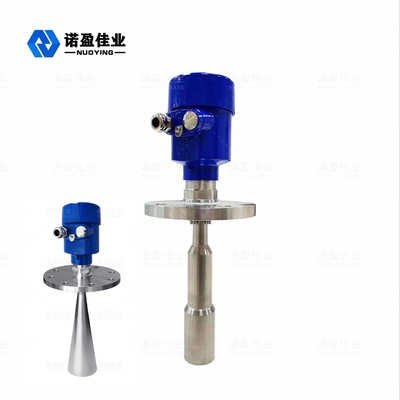

26G Horn Type Radar Level Meter NYRD806 High Frequency Small Blind Zone
26G Radar Level Meter
The radar level meter NYRD80X series sensors are 26GHz high-frequency radar type level measuring instruments, with a maximum measuring distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform signal analysis and processing at a higher rate, so that the instrument can be used for some complex measurement conditions such as reactor and solid silo.
26G Radar Level Meter Technical Parameters
|
Typical Applications |
Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.) |
| Various dusts (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.) | |
| Various solids (grain, pebble, iron ore, coal, etc.) | |
|
Product Model |
NYRD806 |
|
Antenna Type |
horn type |
| Antenna Material | 304 |
| Measuring Range | 10m, 20m, 30m |
| Measurement Accuracy | 0.05%~0.1% F. S |
| Power Supply | 24VDC (two wire, four wire), 220VAC |
| Signal Output | 4... 20mA/HART/RS485/Modbus |
| Process Temperature | - 40~+1200 ℃ |
| Process Pressure | - 0.1~2.0MPa |
| Process connection | thread, bracket, flange, sanitary clamp (optional) |
| Electrical Interface | M20×1.5, 1/2"NPT |
| Protection Grade | IP65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details) |
Remark: Customized products can be designed according to the specific requirements of users!
