Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD-PB |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 40cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Product Model: | NYRD-PB | Antenna Form: | Plate Type |
|---|---|---|---|
| Antenna Material: | 316(optional) | Measuring Range: | 10m(optional) |
| Power Supply: | 220V AC(optional) | Signal Output: | RS485(optional) |
| Process Pressure: | - 0. 1 ~ 2. 0MPa(optional) | Process Temperature: | - 40 ~ + 130 ℃(optional) |
| High Light: | Small Beam Angle Radar Level Meter,26ghz High Frequency Radar Level Instrument,316 Plate Type Radar Level Meter |
||

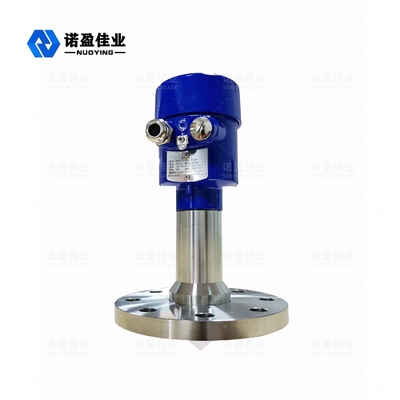

Small Beam Angle Concentrate Energy 26ghz High Frequency Radar Level Meter
26Ghz High Frequency Radar Level Meter Discription
The radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions such as reaction gold and solid silos.
26Ghz High Frequency Radar Level MeterTechnical Parameter
| Antenna material | PTFE, 304/316, PP, PFA |
| Measuring range | 10m, 20m, 30m, 35m, 40m, 80m |
| Measurement accuracy | 0.05%~0.1% F.S |
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature |
- 40 ~ + 130 ℃, -40 ~ + 150 ℃, -40 ~ + 260 ℃, - 40 ~ + 1200 ℃ |
| Process pressure | - 0.1 ~ 0. 3MPa, - 0. 1 ~ 2. 0MPa, - 0. 1 ~ 4. 0MPa |
| Process connection | Thread, bracket, flange, sanitary clamp (optional) |
| Electrical interface | M20×1.5, ½ "NPT |
| Protection grade | IP65, IP67, IP 68 (optional) |
| Explosion-proof grade | ExiaIICT6 Ga, ExdIICT6Gb(see certificate for details) |
