| Place of Origin: | China |
|---|---|
| Brand Name: | Nuoying JIAYE |
| Certification: | Explosion proof certificate |
| Model Number: | NYCSUL-503 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100 to $1100 |
| Packaging Details: | 30cm×25cm×20cm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300 units a month |
| Probe Type: | Integrated | ProbeMaterial: | PP/PVC/PTFE/304(optional） |
|---|---|---|---|
| Measuring Range: | 0-20m | Measurement Accura: | ＜0.25%(Range＜20m) |
| Measuringangle: | 10° | Power Supply: | 24VDC、220VAC |
| Process Temperature: | （-20-70℃） | Process Pressure: | Normal Pressure |
| Explosion-proofgrade: | ExiaⅡCT6 Ga | Protection Class: | IP65,IP67 |
| High Light: | 304 Probe Ultrasonic Level Sensor Wastewater,Ultrasonic Level Sensor Wastewater Cast Aluminum,Explosion Proof ultrasonic fluid level sensor |
||

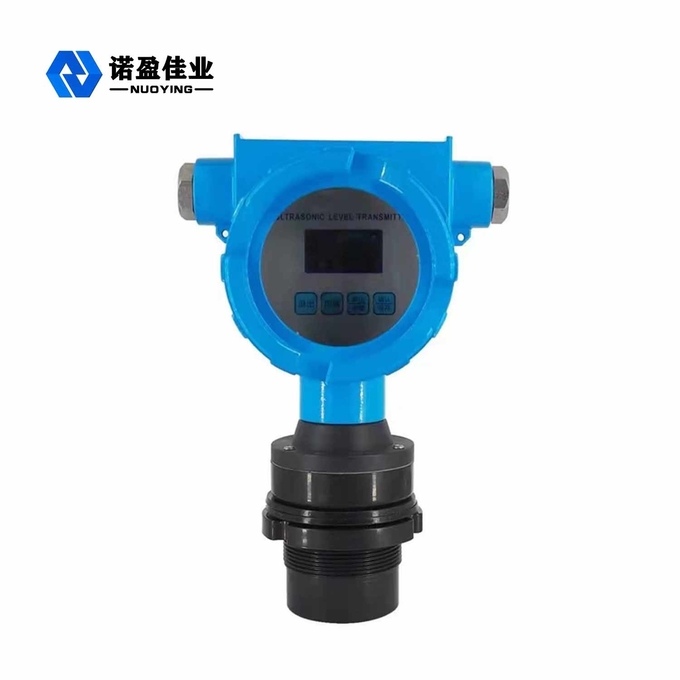

NYCSUL Ultrasonic Level Transmitter
NYCSUL Ultrasonic Level Transmitter Product Description
NYCSUL two-wire ultrasonic level meter is an intelligent non-contact level measuring instrument. The product has automatic power adjustment, gain control, temperature compensation, adopts advanced detection and calculation technology, and has the function of suppressing interference signals, thereby fundamentally improving the measurement accuracy of the instrument to ensure the authenticity of the measurement results. The product can be widely used for liquid level measurement of various liquids, and can also be used for distance measurement.
NYCSUL Ultrasonic Level Transmitter Technical Parameter
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz,100KHz |
| Probe type | Integrated |
| ProbeMaterial | PP/PVC/PTFE/304(optional) |
| Measuring range | 0～20m |
| Measurement accura | ＜0.25%(Range＜20m) |
| Measuringangle | 10° |
| Power supply | 24VDC,220VAC |
| Process temperature | (-20-70℃) |
| Process pressure | Normal pressure |
| Process connection | Thread, Flange, Bracket mounting (optional) |
| Signal output | 4...20mA/HART/RS485... |
| Display mode | Liquid level, distance (empty height) |
| Setting output | Upper limit setting, lower limit setting |
| Display | LCD |
| Shell material | Polypropylene |
| Protection class | IP65,IP67 |
| Explosion-proofgrade | ExiaⅡCT6 Ga |
NYCSUL Ultrasonic Level Transmitter Design Features
- Reasonable design, excellent performance, low unit price, simple structure and high installation convenience;
- Ultrasonic uses a small-angle probe with high transmit power and high sensitivity；
- Arbitrary point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and liquid level control
