Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYSP-L861(Standard) |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $100 to $380 |
| Packaging Details: | 80cm×17cm×24cm，90cm×30cm×30cm |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Probe Rod Length: | 500mm (customizable As Required) | Power Supply: | 24VDC, 220VAC (optional) |
|---|---|---|---|
| Material: | 304+PTFE (optional) | Process Pressure: | < 2.0MPa |
| Operating Temperature: | -40~130℃ | Case Material: | Aluminum Shell，304stainless Steel Optional |
| Time Delay: | 0〜30s Adjustable | Applications: | Liquid, Powder, Particle, Solid Position Control Bar |
| High Light: | 304 PTFE RF Admittance Level Switch,Aluminum RF Admittance Level Switch,304 PTFE rf level sensor |
||

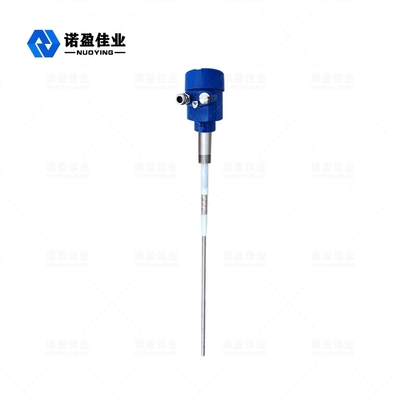

NYSP-L861 (Standard) RF Admittance Switch
NYSP RF Admittance Switch Features
- Versatility: it can be used to measure all kinds of conductive and non-conductive media, such as liquid, viscous matter, particle, powder, fly ash.
- Anti-adhesion: using patented anti-adhesion circuit to eliminate false signals caused by material adhesion.
- Probe detachable: there is no cable connection between the controller and the probe. The controller can be removed and replaced at any time, without affecting the material in and out.
- High and low temperature resistance: suitable for-184 °C to 280 °C working environment, also can provide fbr higher temperature ceramic probe.
- Output form: double pole and double throw relay signal output, at the same time state lamp display output state, and have Oto 30 seconds delay function.
- Unintelligent diagnosis: after electrification, the instrument circuit automatically detects whether the working state is normal.
NYSP RF Admittance SwitchTechnical Parameter
| Applications | liquid, powder, particle, solid position control Bar |
| Material | 304+PTFE (optional) |
| Probe rod length | 500mm (customizable as required) |
| Power supply | 24VDC, 220VAC (optional) |
| Process temperature | -40 ~ +130 °C |
| Process pressure | < 2.0MPa |
| Process connection | Thread, flange (optional) |
| Time delay | 0〜30s adjustable |
| Power loss protection | open, close, field switchable |
| Output relay | double pole, double throw (DPDT) output,5A, 24V DC or 5A, 220VAC |
| Protection grade | IP67 |
| Explosion-proof grade | Exia IICT6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
