| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYRD-809 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $400 to $1800 |
| Packaging Details: | 60cm×30cm×30cm |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/ pre month |
| Measuring Range: | 30m，80m | Material: | 304 316L (optional) |
|---|---|---|---|
| Process Connection: | Universal Flange | Echo Sampling: | 100 Times/s |
| Operating Temperature: | -40~130℃，-40~250℃ | Signal Output: | 4...20mA/HART/RS485/Modbus... |
| Power: | 3W | Explosion-proof Grade: | Exia IICT6 (optional) |
| High Light: | 3W Radar Level Transmitter,316L Radar Level Transmitter,316L guided wave radar sensor |
||

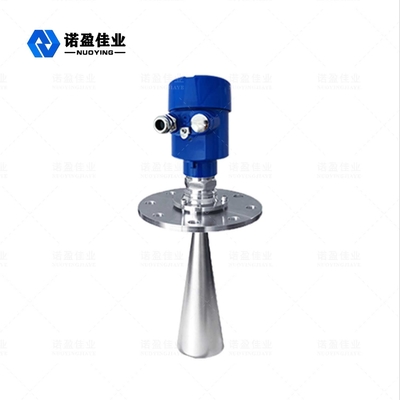

26GHz NYRD-809 Radar Level Meter
The radar level meter NYR D80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.
Radar Level Meter Technical Parameter
| Typical application | Monitoring Solids, dust, particles, etc |
| Transmit frequency | 26GHz |
| Accuracy | 3mm |
| Range | 30,80m |
| Antenna material | 304 316L (optional) |
| Echo sampling | 100 times/s |
| Process temperature | -40~130℃,-40~250℃ |
| Ambient humidity | 0~90% |
| Resolution | 1mm |
| Process connection | Universal flange |
| Electrical Interface | M20×1. 5, ½ " NPT |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Supply power | 24V DC (optional) |
| Power | 3W |
| Explosion-proof grade | ExiaⅡCT6(optional) |
| Protection class | IP67 |
※ Note: Products can be customized according to the specific requirements of users!

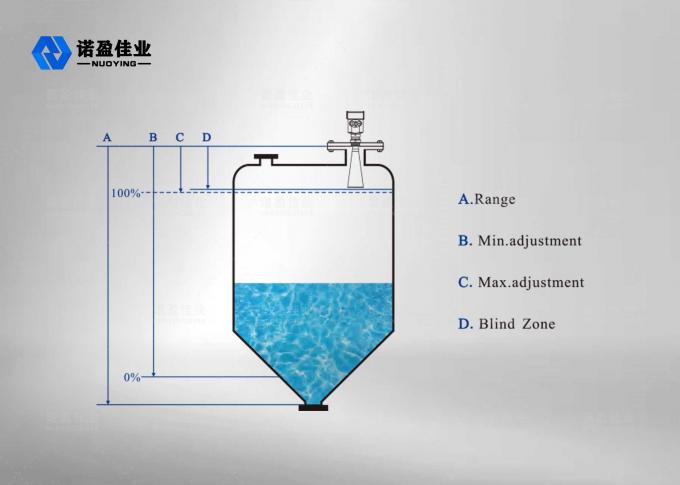

Radar Level Meter Measuring principle
The radar level antenna emits a narrow microwave pulse and transmits it down through the antenna. After the pulse touches the surface of the medium being measured, it is reflected back and accepted by the antenna system again, transmitting the signal to the electronic circuit part automatically converted into a object position signal(because the pulse propagation speed is extremely fast, The time it takes for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous.)
Radar Level Meter Application field
- Power plants: coal piles, raw coal bunkers, fuel bunkers, reservoirs, exhaust gas purification tanks, warehouse pumps, steam drums, ash storage, fuel tanks, etc.;
- Oilfield: crude oil storage tank, product oil storage tank, three-phase separator, settling tank, sewage tank, oil-water interface, drilling mud tank, etc.;
- Chemical industry: crude oil distillation tower, raw material warehouse, intermediate silo, reaction tank, ammonia water tank, solid silo, separator, asphalt storage tank, etc.;
- Metallurgy: blast furnace, ore silo, ore crusher, raw material warehouse, auxiliary material warehouse, alumina powder warehouse, electrolytic tank buffer tank, etc.;
- Water conservancy: canals, reservoirs, farmland irrigation, river level monitoring, flash flood warning, urban shackles, etc.;
- Cement: stone silo, raw silo, cement silo, coal powder silo, slag storage silo, commercial warehouse, etc.;
- Food: juice factory, milk factory, raw sugar storage tank, ketchup storage tank, brewery storage tank, etc.;
- Pharmaceutical: Chinese medicine storage tanks, separators, fermenters, etc.;
- Water treatment: reservoir, sewage pool, water treatment tank, sedimentation tank, deep well, drinking water network, etc.;
- Papermaking: raw material warehouse, storage tower, drying drum, chemical material storage warehouse, etc.;
- Others: quarry, coal mine, environmental protection, shipbuilding and other industries.
