Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYRD806 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $740~$950/pcs |
| Packaging Details: | Carton, 60cm x 30cm x 30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Measurement Range: | 30m | Antenna Material: | 316L |
|---|---|---|---|
| Accuracy: | ±3mm | Medium Temperature: | -40℃~250℃ |
| Process Pressure: | -0.1 〜4.0MPa | Power Supply: | 24VDC (two Lines, Four Lines) |
| Process Connection: | Support, Flange | Explosion-proof Grade: | Exia II CT6 Ga |
| High Light: | 26GHz Radar Level Indicator,Stainless Steel Radar Level Indicator,RS485 Radar Level Gauge Four Lines |
||

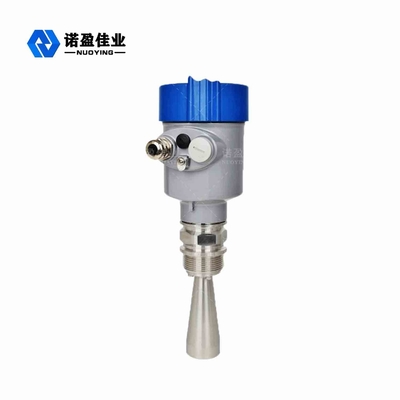

Stainless Steel NYRD806 High Frequency 26GHz Radar Level Indicator 316L RS485 Four Lines
NYRD806 High Frequency 26GHz Radar Level Indicator
The radar level meter NYRD80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.
NYRD806 High Frequency 26GHz Radar Level Indicator Technical Parameters
| Application | Temperature, pressure, and slightly corrosive liquid |
| Measurement range | 30m |
| Antenna material | 316L |
| Accuracy | ±3mm |
| Medium temperature | -40℃~250℃ |
| Process pressure | -0.1 〜4.0MPa |
| Power supply | 24VDC (two lines, four lines) |
| Process connection | Support, Flange |
| Protection grade | IP67 |
| Frequency range | 26GHz |
| Explosion-proof grade | Exia II CT6 Ga |
NYRD806 High Frequency 26GHz Radar Level Indicator Design characteristics
- The antenna is small size and easy to install; non-contact radar, no wear and no pollution.
- Almost free from corrosion and fbam; almost unaffected by changes in water vapor, temperature and pressure in the atmosphere.
- The severe dust environment has little effect on the work of high frequency level gauges.
- The shorter wavelengths provide better reflection fbr sloping solid surfaces.
- The beam angle is small, the energy is concentrated, and the echo capability is enhanced while avoiding interference.
- The measurement dead zone is smaller, and good results can also be obtained fbr small can measurement.
- High signal-to-noise ratio, even in the case of fluctuations, can achieve better performance.
- High frequency is the best choice fbr measuring solid and low dielectric constant media.
