76 - 81GHz Compact Sensor Radar Level Transmitter For Pressure Stirring Storage Tank

Sold 0 only 999999999 item(s) left
$850.00 $1,105.00 Save $255.00
Quantity
Share the love
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Description
Product Details:
Place of Origin: Xi'an, Shaanxi，China
Brand Name: NUOYINGJIAYE
Certification: CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb
Model Number: NYRD808
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/ pre month

Application: Liquids,dust,solids Item No.: NYRD808
Antenna Form: Bar Type, Water Drop Type Antenna Material: PTFE、304、316
Measuring Range: 35m,40m,80m Accuracy Of Measurement: 0.05%~0.1%F.S
High Light:

Compact Radar Level Sensor 81GHz

,

Pressure Stirring Tank Radar Level Transmitter

,

80m Radar Liquid Level Sensor

76-81GHz Compact Sensor Radar Level Transmitter for Pressure Stirring Storage Tank

Products Description

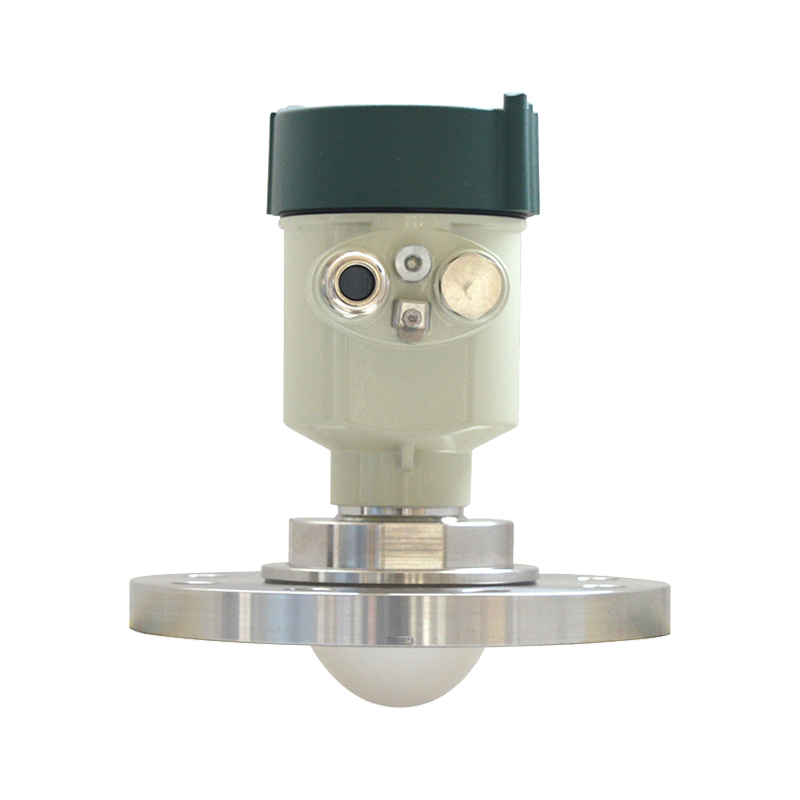

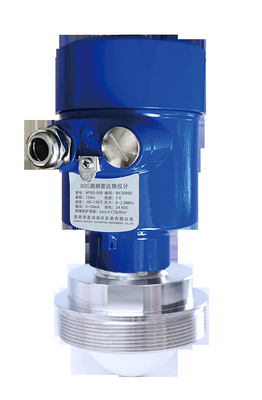

76 - 81GHz Compact Sensor Radar Level Transmitter For Pressure Stirring Storage Tank 0

High Quality Accuracy OEM 76-81GHz Radar Level Meter Sensor 80GHz Compact Radar Level Transmitter for Slurry Storage Tank


The series is FMCW radar operating at 76-81 GHz, which has a maximum measuring range of 120m and a minimum blind zone of 8cm. It supports 4-wire and 2-wire applications. Higher operating frequency and shorter wavelength make it ideal for solid applications,including those with extreme dust and high temperature to + 200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.

Product Parameters
Frequency
76GHz ~ 81GHz, 5GHz FMCW bandwidth
Measuring range
x0: 0.3 m ~ 60m
x1: 0.08m~30m
x2: 0.6m ~ 120m
Measurement accuracy
±1mm
Beam Angle
3°/6°
Minimum measured dielectric constant
>=2
Power Supply
15~28VDC
Signal output
2x: 4 ~ 20mA or RS-485
3x: 4~20mA
Fault output
3.8mA, 4mA, 20mA, 21mA, hold
Enclosure
Aluminum alloy, stainless steel
Antenna type
Lens antenna/anti-corrosive antenna / flange isolated by quartz
Process temperature
T0:-40~85℃; T1:-40~200℃; T2:-40~500℃; T3:-40~1000℃
Process pressure
-0.1~2MPa
Product Size
Ø100*270mm
Cable entry
M20*1.5
Recommended cables
AWG18 or 0.75mm²
Protection class
IP67
Explosion-proof grade
ExdiaIICT6
Installation me
