Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi |
|---|---|
| Brand Name: | nuoyingjiaye |
| Certification: | CE |
| Model Number: | NYSP-Z24 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $450 to $1700 |
| Packaging Details: | carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Material: | 304 | Range: | 30m |
|---|---|---|---|
| For: | Ultra High 30m For Ultra High Insulation Solid | Temperature: | High |
| Power: | 15-35VDC | Pressure: | Standard |
| High Light: | Adjustable RF Admittance Level Sensor,High Temperature RF Admittance Level Sensor,Soft Rope Admittance Type Level Sensor |
||

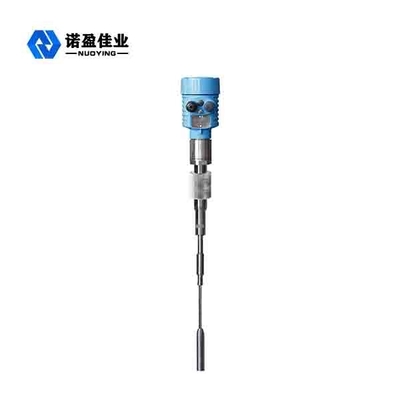

NYSP-Z24 Adjustable Soft Rope RF Admittance Level Sensor High Temperature Insulation
The NYSP-Z24 has high stability, high sensitivity and wide applications, etc. The use of modular design, can be concise and easily realize the instrument set.
Technical Parameter of RF Admittance Level Transmitter
| Applications | Ultra-high insulation solid |
| Probe type | cable |
| Range | 0~30m |
| Process temperature | -40～250℃ |
| Ambient temperature | -40 ℃ ~ + 70 ℃ |
| Storage temperature | -20 ℃ ~ + 65 ℃ |
| pressure | standard |
| Power supply | (13-35)VDC |
| Signal output | 4...20mA/HART/RS485/Modbus...(optional) |
| Process connection | Thread/Flange |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6(optional) |
| Delay: | 0 ~ 30 s adjustable |
