Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NH-93420 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquid | Product No.: | NH-93420 |
|---|---|---|---|
| Measuring Range: | 0~200m | Diaphragm Material: | 316L/Ceramics (optional) |
| Precision Grade: | ±0.25%F.S/±0.5%F.S/±1.0%F.S | Power Supply: | 24VDC |
| Output: | 4... 20mA/HART/RS485/Modbus... | Display: | LCD(Optional) |
| Process Connection: | Screw Thread, Flange And Bracket Mounting (optional) | Load Capacity: | ＜(U-15)/0.02A |
| Stable Performance: | ±0.5%F.S/Year ±1.0%F.S/Year | Shell Material: | Aluminum, Stainless Steel (optional) |
| Protection Grade: | IP68 | Explosion-proof Grade: | ExiaⅡCT6 Ga ,ExdⅡCT6 Gb |

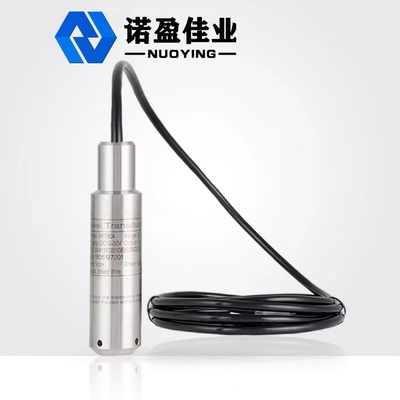

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor
Product Description
NH-93420 high temperature liquid level transmitter consists of stainless steel gas collector, stainless steel capillary and junction box. The sensor and signal processing circuit are designed in the junction box, and the gas collecting cylinder is put into the measured liquid, which is responsible for collecting pressure signals. The gas in the gas collector transmits the collected liquid level pressure signal to the sensor through stainless steel capillary, thus avoiding the direct contact between the sensor and the measured medium, adapting tohigh temperature corrosion and other occasions, effectively solving the problem of high temperature corrosive liquid and sewage level measurement.
NH-93420 series are widely used in liquid level measurement and control in environmental protection, water conservancy, frequency conversion water supply, industrial process control, chemical industry and other fields. When measuring medium such as sewage and silt, filter structure can be added according to customer's requirements.
| Technical Parameters | |
| Comprehensive accuracy | ± 0.5% F.S (0.25% FS or 0.1% FS customized) |
| Response time | 5ms (up to 90% FS) |
| Measurement medium | Well water, fire water tank, river water, tap water, etc. |
| Medium temperature | -20~60ºC |
| Warranty | 24 months |
| Overload capacity | 200%FS |
| Power supply | 9~30VDC(typical 24VDC),5VDC |
| Output signal | 4~20MA,1~5V,0~5V,0~10V,RS485,switching value, etc. |
| Housing material | Cast aluminum junction box, 304 stainless steel probe, rubber wire |
| Process connection | G1 male |
| Electrical interface | Tight wire waterproof nut and five-core air conducting cable |
| air conducting cable | IP65 |
Product Showcase
