| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYZX |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 40cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Powder, Small Particle Level Control | Explosion-proof Grade: | ExiaIICT6 (see Certificate For Details) |
|---|---|---|---|
| Product Model: | NYZX | Protection Grade: | IP67 |
| Power Supply: | 24VDC, 220VAC | Moment: | 10kg·m (1N·m) |
| Electric Shock Capacity: | 250V 5A (SPDT Single Pole Double Throw ) | ||
| High Light: | Powder Granules Rotary Level Switch,Blade Type Rotary Paddle Level Switch,Industry Rotary Paddle Level Switch |
||

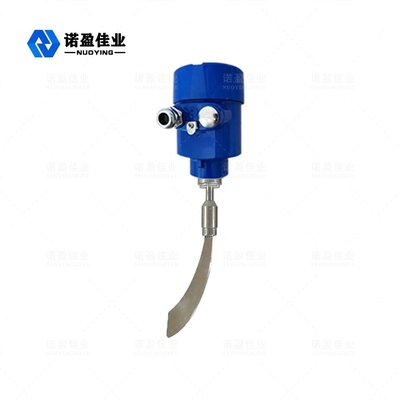

Blade Type Industry Powder Granules Rotary Paddle Level Switch
Rotary Paddle Level Switch Working Principle
NYZX series resistance rotary material level switch uses a permanent magnet motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box, and the detection device outputs a switch signal to the outside, and cuts off the power to stop the blade from rotating. When the material level drops, the blade resistance disappears, and the detection device returns to the original state depending on the tension of the spring, Adjust the spring tension according to the specific gravity of different materials. When the specific gravity is large, adjust the spring tension to the strong or the strongest, otherwise, adjust the spring tension to the weak or the weakest.
| Electric shock capacity | 250V 5A (SPDT single pole double throw ) |
| Medium density | ≥0.4g/cm³ |
| Moment | 10kg·m (1N·m) |
| Insulation resistance | ≥100MΩ (500VDC) |
| Protection grade | IP67 |
| Explosion-proof grade | ExiaIICT6 (see certificate for details) |
