| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYRD701 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $450~$550/pcs |
| Packaging Details: | Carton, 40cm x 35cm x 35cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Features: | Applied To A Variety Of Complex Conditions. | Products Model: | NYRD701 |
|---|---|---|---|
| Frequency: | 1.8GHz | Process Temperature: | -40~130℃ |
| Typical Application: | Dust, Small Particals Of Material, No Mixing Liquid | Antenna Type: | Cable Type |
| Echo Sampling: | 55 Times/s | Procedure Connection: | Thread/flange/holder (optional) |
| High Light: |
1.8GHz Radar Level Meter,Cable Radar Level Meter,Radar Liquid Level Sensor NYRD701 |
||

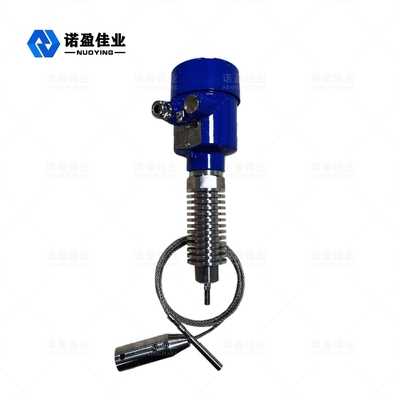

NYRD701 Cable Type 1.8GHz Radar Level Meter Transmitter
NYRD701 Cable Type 1.8GHz Radar Level Meter Transmitter
The high-frequency microwave pulse emitted by the guided wave radar propagates along the detection component (steel cable ), and when it encounters the measured medium, due to the sudden change of the dielectric constant, it causes reflection, and part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
NYRD701 Cable Type 1.8GHz Radar Level meter Technical Parameter
| Typical application |
1. Liquid (strong corrosion, low dielectric constant, adhesion, high temperature and high pressure, built-in heating coil, ladder, floating plate and other complex occasions) 2.Dust (fly ash, limestone powder, cement powder, concrete and other media) 3. Solid (small particles, grains, pebbles, sand and other media) |
| Transmit frequency | 1.8GHz |
| Products model | NYRD701 |
| Antenna type | Cable type |
| Antenna material | PTFE,304,316 |
| Echo sampling | 55 times/s |
| Measuring range | 30m |
| Measuring accuracy | ±1mm |
| Power supply | 24VDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~130℃ |
| Process pressure | -0.1~4.0MPa |
| Procedure connection | Thread/flange/holder (optional) |
| Protection level | IP67 |
| Explosion proof grade | Exia II CT6 Ga |
Note: Products can be customized according to the specific requirement of users!
