| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NY3051 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquid/Gas/Steam | Product No.: | NY3051 |
|---|---|---|---|
| Measuring Range: | 0.006MPa,0.04MPa,0.25MPa,1.0MPa,2.5MPa | Filling Liquid: | Silicone Oil, Inert Oil (optional) |
| Diaphragm Material: | 316L, Ha C Alloy (can Be Customized) | Precision Grade: | Class 0.025, Class 0.075, Class 0.1, Class 0.2 |
| Power Supply: | 24VDC | ||
| High Light: |
Differential Capacitive Pressure Sensor,Capacitive Differential Pressure Transmitter,Non Corrosive Liquids Pressure Sensor Transmitter |
||
Capacitive pressure sensor differential pressure transmitter
Description capacitive pressure sensor transmitter
3051 pressure transmitter 4-20ma delivers unparalleled reliability, performance and safety to increase your plant profitability. Rosemount 3051C pressure transmitter 4-20ma means a stronger bottom line. The comprehensive offering enhances your pressure, level and flow applications from simple measurement to stringent SIL2 safety compliance.

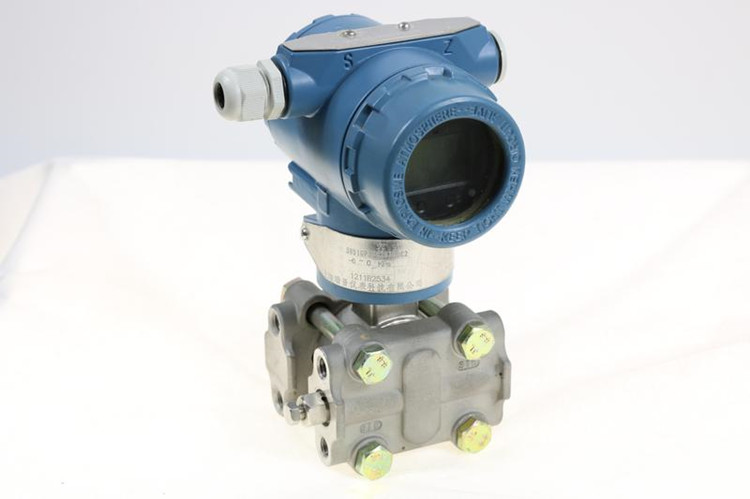

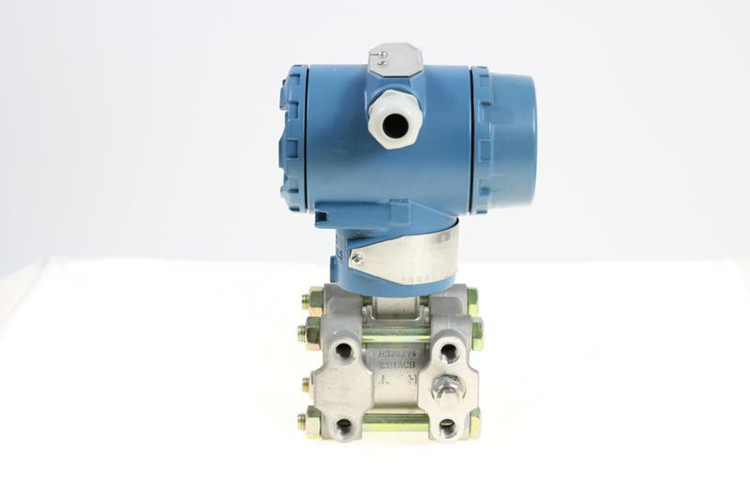

Detailed Images capacitive pressure sensor transmitter
Specification capacitive pressure sensor transmitter
| Measurement Type | Differential, Gage, Absolute, Level, Flow |
| Output | 4-20 mA HART, FOUNDATION™ fieldbus, PROFIBUS PA, 1-5 Vdc HART Low Power |
| Reference Accuracy | ± 0.065% of span with 0.04% Optional |
| Total Performance | ± 0.15% of span |
| Long Term Stability | ± 0.125% of URL for 5 years |
| Rangedown | 100:1 |
Features capacitive pressure sensor transmitter
Performance up to 0.04% accuracy
Five year installed stability of 0.125%
Calibrated spans from 0.3 to 10000 psi (10,3 mbar to 689 bar)
Multiple process connections available
316L SST and Hastelloy C276 process isolators
Applications capacitive pressure sensor transmitter
single crystal resonant silicon sensor technology
super performance, use to measure pressure
Compatible with 316LSS
noncorrosive liquids, Shipping and aviation industry, Hydraulic pressure and pneumatic control system, Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc.
Selection Guide capacitive pressure sensor transmitter
