| Place of Origin: | Xi'an |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | ISO9001,CE |
| Model Number: | NYMFC-G |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $845.0~$965.0 |
| Packaging Details: | 40*20*20 CM carton box |
| Payment Terms: | T/T |
| Supply Ability: | 800pcs per month |
| Accuracy: | ±1% | Type: | Gas Flow Meter/controller |
|---|---|---|---|
| Medium: | Gas And Air | Display: | LCD Digital Of Gas Flow Meter |
| Power Supply: | 7-16VDC | Communication: | RS485 And RS232 |
| High Light: | Digital micro motion mass flow meter,RS485 Micro Flow Controller,RS485 Micro Flow Meter |
||

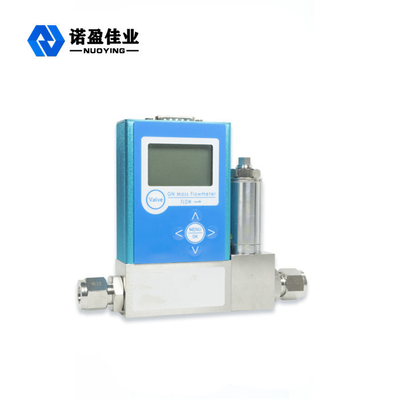

Digital Micro Motion Flow Meter Air Gas Mass Flow Meter Mass Micro Flow Controller With RS485
Digital Micro Motion Flow Meter Air Gas Mass Flow Meter Description:
Gas mass flow controller, gas flow meter, thermal distributed mass flowmeter, regulator and multi variable differential pressure mass flow meter, the research and development, production and service of the products are integrated.
Gas Mass flow controller with high precision, fast response, good repeatability, stable and reliable, wide range of working pressure, etc.. The operation is convenient to use, and can be installed at any position, and is matched with the DSN200 flow display instrument or other flow controller display device. Can also be directly connected to the computer to achieve RS232 connection, very convenient to achieve automatic control. It can also be used as a gas mass flow meter, with the flow of the first gas flow and the cumulative flow of the DSN200 flow display to carry out accurate measurement and control.
Digital Micro Motion Flow Meter Air Gas Mass Flow Meter Parameters:
| Flow range | (0-5,10,20,30,50,100,200,300,500)SCCM;(0-1,2,3,5,10,20,30,50,100)SLM |
| Accuracy | 1%FS of gas mass flow controller |
| Linearity | 0.5%FS |
| Repeatability | 0.2%FS of gas flow meter |
| Responding time | Less than 1s |
| Pressure difference | (0.0500.3)Mpa |
| Max.Pressure | 10MPa |
| Working temperature | 5-65℃ of gas mass flow controller |
| Input/output | Digital:RS232/RS485 |
| Power Supply | Analog: 0-5vdc or 4-20mA |
| Weight | 7-16vdc,1A of gas flow meter |
Digital Micro Motion Flow Meter Air Gas Mass Flow Meter Features:
1.The display of gas mass flow controller could siaplay the instant flow ,total flow ,total time and control state.At the right of display there are any key to set the paraneters.
2.Swagelog: DN3/6/10, 1/4" 3/8";
3.VCR connector: 1/4" 3/8" 1/8".
4.Output signal:red wire
5. Zero :Violet wire
6.RS232 input signal :white wire
7.Voltage setting:yellow
8.RS232 output:organe
9.Current setting:brown
10.Valve control:blue
11.GND:green
