| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYLD |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton,90cm×50cm×50cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Liquid Flow Measurement In Pipes | Nominal Diameter: | DN6mm~DN3000mm |
|---|---|---|---|
| Medium Temperature: | -20℃ ~+70℃ | Ambient Temperature: | -25℃~+60℃ |
| Environment Humidity: | 5~100%RH (relative Humidity) | Power Supply: | AC220V 50Hz /DC24V/3.6V |
| Counter: | Forward Total, Reverse Total | Protection Grade: | IP65, IP67,IP68 (optional) |
| High Light: | Water Electromagnetic Flowmeter,Digital Electromagnetic Water Flow Meter IP65,Liquid Magnetic Flowmeter |
||

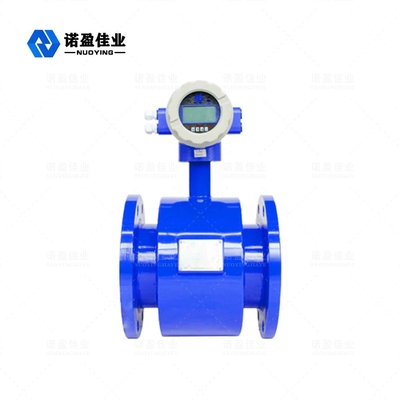

Digital Water High Precision Liquid Electromagnetic Flow Meter
Pipeline Electromagnetic Flow Meter Discription
NYLD type pipeline electromagnetic flow meter is a kind of flow meter with high accuracy and high reliability. It is used to measure the volume flow of conductive liquid and slurry in closed pipelines, and is widely used in steel, electric power, petroleum, chemical, coal, metallurgy, mining, paper-making, water supply and drainage, food, medicine and other industries.
Pipeline Electromagnetic Flow Meter Design Feature
◎Measurement accuracy is unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity.
◎There are no obstructing flow parts in the measuring tube, no pressure loss, and low requirements for straight pipe sections.
◎The converter features an LCD backlit display for easy reading in direct sunlight or in a dark room.
◎The parameters are set through the infrared touch keys, and the settings can be set up safely without opening the cover of the converter in harsh environments.
Pipeline Electromagnetic Flow Meter Parameter
| Typical application | Liquid flow measurement in pipes | ||
| Nominal diameter | DN6mm~DN3000mm | ||
| Nominal pressure | 0.6~4.0MPa (customized design for special pressure) | ||
| Measuring range | 1500:1 flow rate is set to <15m/s | ||
| Measurement accuracy | ±0.5% of the displayed value, ± 0.3% or ±0.2% of the optional displayed value | ||
| Lining material | Polychloroprene rubber, Urethane Rubber, Silicone Chlorine Rubber, PTFE, Polypropylene (F46), PFA | ||
| Electrode form | Standard type, scraper type, replaceable type | ||
| Electrode material | 316, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum/Iridium, Stainless Steel Coated Tungsten Carbide | ||
| Medium temperature | All-in-one | -20℃ ~+70℃ | |
