| Place of Origin: | Xi'an,Shaanxi |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Ex-proof |
| Model Number: | NYLWGY-N |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $265.0~$485.0 |
| Packaging Details: | 40*30*30 carton box |
| Payment Terms: | T/T, D/P |
| Supply Ability: | 2000pcs per month |
| Output: | Pulse | Diameter: | DN4~DN100 (mm) |
|---|---|---|---|
| Medium: | Non-corrosive Low Velocity Liquid Without Impurity | Operating Temperature: | -20℃~+60℃ |
| Atmospheric Pressure: | 86kPa~106kPa | Ingress Protection: | IP65 |
| High Light: | Sanitary Turbine Flow Meter,IP65 Liquid Turbine Meter,IP65 Gas Turbine Meter |
||

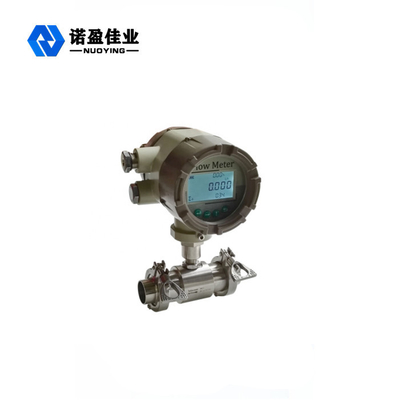

NYLWGY-N Turbine Type Sanitary Milk Beer Flow Meter
NYLWGY-N Turbine Type Sanitary Milk Beer Flow Meter Description:
NYLWGY-N series sanitary type turbine flow meter is a flow meter that widely applied in industries of pharmaceutical, food, beverage for measurement, batching, control, filling, etc. Rotating part of the flow meter is made of special material that possesses good anti-corrosive and rust proof performance. Structure of the flow meter is special designed and greatly approved accuracy and repeatability of the flow meter. Product also with easy maintenance connection, which is suitable for pharmaceutical and beverage industries.
NYLWGY-N Turbine Type Sanitary Milk Beer Flow Meter Parameters:
| Item | Data |
| Medium | Non-corrosive low velocity liquid without impurity, |
| not suitable for gas and steam | |
| Accuracy | Class 1.0 |
| Output | Pulse, 4-20mA analog output, RS485 (Modbus-RTU protocol), HART |
| Diameter | DN4-DN100 |
| Medium temperature | Default type T1: -20℃~+80℃ |
| High temp. type T2: -20℃~+120℃ | |
| High temp. type T3: -20℃~+150℃ | |
| Operation condition | Operating temperature: -20℃~+60℃ |
| Related humidity: 5%~90% | |
| Atmospheric pressure: 86kPa~106kPa | |
| Ingress protection | IP65 |
NYLWGY-N Turbine Type Sanitary Milk Beer Flow Meter Features:
Applicable medium: liquid
Not applicable medium: gas, steam
Require the media to clean, to install the filter
Advantages of the instrument
High accuracy, generally up to ± 0.5% R, ± 1.0% R
Good repeatability, short-term repeatability of up to 0.05% - 0.2%
Compact and compact, easy installation and maintenance
High pressure level
Pressure loss is small, strong circulation
Anti-vibration performance
