| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYWT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $600 to $1800 |
| Packaging Details: | 60cm×30cm×30cm |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/ pre month |
| Range Specifications: | 3 M、5 M、10 M、15 M、20 M、30 M、50 M | Display Resolution: | 1 Mm |
|---|---|---|---|
| Short Time Repeatability: | 1 Mm | Power: | ＜1 W |
| Communication Protocol: | RS 485、Infrared、Hart、Modbus | Relay Alarm Output: | DC 30V 5A AC250V 5A |
| Power Supply: | DC 24 V AC 220 V | Liquid Level Display: | 6-bit 128×64 LCD (unit: M) |
| High Light: | External Attached Ultrasonic Level Transmitter,250V 5A Ultrasonic Level Switch,250V 5A external tank level indicator |
||

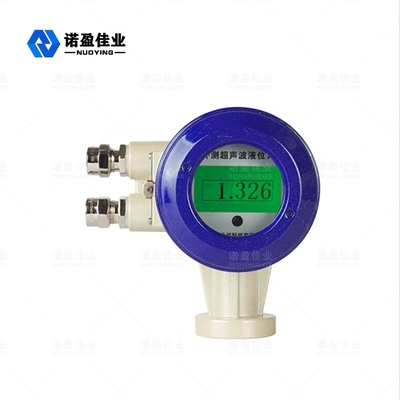

NYWT Easy Maintenance Externally Attached Ultrasonic Type Level Switch
Easy Maintenance Externally Attached Ultrasonic Type Level Switch
The externally attached ultrasonic liquid level gauge adopts the leading digital signal processing technology, which avoids the influence of the wall thickness of the container and realizes the true non-contact measurement of the liquid level in the closed container outside the tank. It is not allowed to open holes in the container under test, the installation is simple, online installation and debugging can be realized, and the production is not affected. Liquid level gauge for precise measurement.
The externally attached ultrasonic liquid level switch is a new type of liquid level monitoring and alarm device. It is mainly used to detect the liquid level of the storage tank, realize the alarm on and off the line or detect whether there is a medium in the pipeline (dry state protection).
Externally attached ultrasonic liquid level gauge Technical Parameter
|
Range specifications |
3 m,5 m,10 m,15 m,20 m,30 m,50 m |
|
|
Display resolution |
1 mm |
|
|
Short time repeatability |
1 mm |
|
|
Measurement error |
±1‰FS,±2‰FS,±5‰FS |
|
|
Migration amount |
±100 mm |
|
|
Signal output |
( 4～20 ) m A,Hart,MAX.Ω |
|
|
Power |
＜1 W |
|
|
Communication protocol |
RS 485,Infrared,Hart,Modbus |
|
|
Relay alarm output |
DC 30 V 5 A AC 250 V 5 A |
|
|
Ambient temperature |
Normal temperature:- 20℃～+ 70℃ |
Low temperature:- 40℃～+ 70℃ |
|
Operating temperature |
Normal temperature:- 50℃～+ 100℃ |
High temperature:+ 60℃～+ 200℃ |
|
Ambient humidity |
(15 %～100 %)RH |
|
|
Power supply |
DC 24 V AC 220 V |
|
|
Electrical connections |
M 20×1 . 5 |
|
|
Measuring blind area |
There is no blind area or small blind area, the blind area is related to the wall thickness, the small blind area is twice the wall thickness. |
|
|
Host weight |
2 kg |
|
|
Host dimension |
Length 158 mm× width 112 mm× height 146 mm |
|
|
Diameter of host base hole |
M 5 |
|
|
Length of the cable |
5 m,10 m,15 m,20 m,30 m |
|
|
Liquid level display |
6-bit 128×64 LCD (unit: m) |
|
|
Protection class |
IP 65,IP 67 |
|
|
Explosion-proof grade |
Exd II CT 6,Exia II CT 6 |
|
※ Note: Products can be customized according to the specific requirements of users!
Externally attached ultrasonic liquid level gauge Features
- The transducer with strong emission force, self-cleaning surface, using the updated transducer structure and manufacturing process, significantly improve the working performance of the transducer.
- Microprocessor program control, intelligent signal processing technology, can realize a variety of typical working conditions software processing mode, so that the matter level meter can adapt to solid, liquid, dust and other complex working conditions.
- Infrared remote control programming adjustment, simple and reliable operation, and with liquid crystal display.
- Non-contact continuous measurement to reduce maintenance;
- Can be used to measure the level, space, distance, also can be standard or special switch liquid tank automatic liquid level - volume conversion; 6. LCD with backlight can be displayed according to standard engineering units.
