| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NT-93420 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 40cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Steam | Load Capacity: | 0~500Ω |
|---|---|---|---|
| Power Supply: | 24VDC | Response Time: | ≤350ms |
| Temperature Drift: | ±0.025% / ℃ | Ambient Temperature: | - 20 ~ + 80 ℃ |
| Protection Grade: | IP68 | Live Display: | LCD(optional) |
| High Light: | Flange Type Temperature Transmitter Sensor,24VDC Thread Temperature Transmitter,IP68 Industrial Temperature Sensor |
||

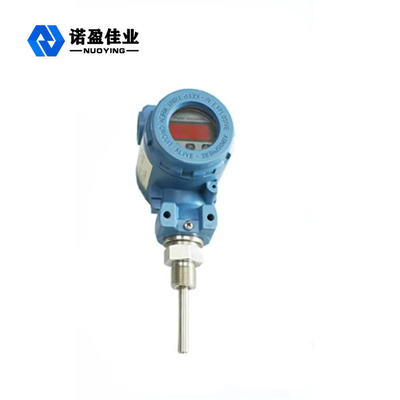

Flange Type Temperature Transmitter 24VDC Thread Ip68 Steam Solid
Temperature Transmitter Design Feature
◎Fast response, high accuracy, compact and durable structure, strong anti-interference ability;
◎Waterproof, explosion-proof, temperature-resistant, shock-resistant;
◎Products are designed and manufactured to high quality standards.
Temperature Transmitter Discription
It is a device that converts physical measurement signals or ordinary electrical signals into standard electrical signal output or can be output by communication protocol. Temperature transmitter is an instrument that converts temperature variables into standardized output signals that can be transmitted, and is mainly used for the measurement and control of industrial process temperature parameters. The current transmitter converts the AC current of the main circuit under test into a standard signal of the constant current loop, which is continuously transmitted to the receiving device.
Temperature Transmitter Parameter
| Process connection | Thread, flange (optional) |
| Load capacity | 0~500Ω |
| Response time | ≤350ms |
| Temperature drift | ±0.025% / ℃ |
| Time drift | less than ±0.5% / year |
| Protection tube material | 1 Cr18Ni9Ti or ceramic or high aluminum tube |
| Shell material | Aluminum |
| Live display | LCD(optional) |
| Protection grade | IP68 |
| Explosion-proof grade | ExiaIIBT5, ExdIIBT6 (see certificate for details) |
