| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NYRD808 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquids,dust,solids | Item No.: | NYRD808 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
| Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
| High Light: | Radar Cement Level Sensor,Grain Bin Radar Level Meter,40m Radar Hart Level Transmitter |
||

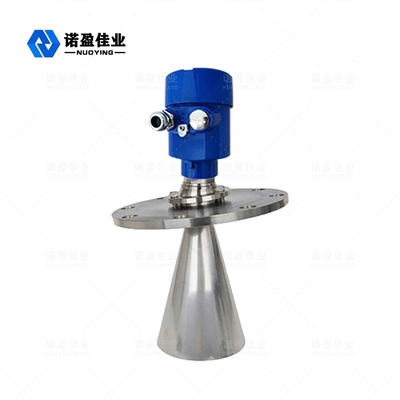

Cement level sensor radar grain bin radar level meter hart radar level transmitter
Description of cement level sensor radar grain bin radar level meter hart radar level transmitter
Very short microwave pulses with very low emission energy are transmitted and received through antenna systems.Radar waves travel at the speed of light.The running time can be converted into a level signal by the back of the electronic component.A special time extension method ensures stable and accurate measurements in a very short time.
Even in the presence of spurious reflection, the latest microprocessing technology and our unique pulse-software can accurately analyze the object position echo.
By inputting the container size, the overhead distance value can be converted into a signal proportional to the object position.The meter can be adjusted with empty storage
Environmental conditions:
Suitable for the environment with great temperature and pressure change, inert gas, smoke, steam and volatilization, explosion proof and corrosive.
Environmental and energy impacts:
The antenna of the radar object level meter emits extremely narrow microwave signals, which can work normally in the range of industrial frequency band.Extremely low emission power, no harm to human body and environment.
Safety in dangerous places:
radar level meter in accordance with the safety type Ex ia Ⅱ T6 explosive-proof grade C design.The shell is made of aluminum and is connected to the earth.Strictly abide by the state regulations on installation of explosion-proof hazardous areas.
Working conditions:
The temperature can be extended to (-40-400) degrees through different components, such as: air cooling device, water cooling device, scavenging device. The pressure can be extended to 4000KPa with different pressure sealing components
Specification of cement level sensor radar grain bin radar level meter hart radar level transmitter
| Range | 20m | Medium temperature | -40~ 150℃ |
| Process connection | flange | Process pressure | Nomal pressure |
| Accuracy | ±3mm | Frequency | 26GHz |
| Explosive-proof grade | ExibIICT6Gb
|
Ingress protection | IP67 |
| Signal output | 4-20mA/HART(2 WIRES/4 WIRES) | ||
| Application | Sanitary liquid storage container, highly corrosive container | ||
Dimension of cement level sensor radar grain bin radar level meter hart radar level transmitter
