| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYRD805 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $620~$860/pcs |
| Packaging Details: | Carton, 30cm x 20cm x 20cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Application: | Various Corrosion Liquid | Antenna Material: | PTFE |
|---|---|---|---|
| Measurement Range: | ≤10m | Medium Temperature: | -40℃~+130℃ |
| Process Pressure: | -0.1〜0.3MPa | Explosion-proof Grade: | Exd II CT6 Gb |
| Signal Output: | 4... 20mA/HART | Accuracy: | ±3mm |
| High Light: | Echo Radar Level Transmitter,PTFE Radar Tank Level Indicator,Radar Liquid Level Transmitter High Frequency |
||
High Frequency NYRD805 Radar Level Transmitter PTFE Better Performance Echo Ability

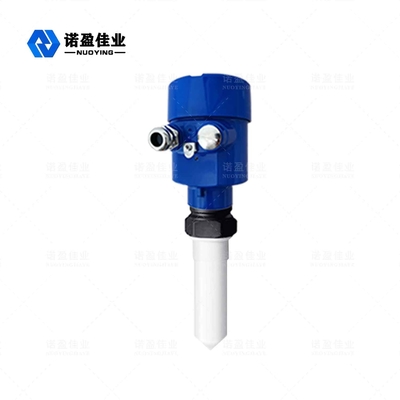

High Frequency NYRD805 Radar Level Transmitter
The NYRD805 radar level meter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 10 meters. The antenna is further optimized, The beam angle is small and the energy is concentrated, which enhances the echo ability and helps to avoid interference.and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc..The measurement blind area is smaller, and it can also achieve good results for small tank measurement.
High Frequency NYRD805 Radar Level Transmitter Technical Parameter
| Application | various corrosion liquid |
| Antenna material | PTFE |
| Measurement range | ≤10m |
| Frequency range | 26GHz |
| Accuracy | ±3mm |
| Medium temperature | -40℃~+130℃ |
| Process pressure | -0.1〜0.3MPa |
| Power supply | 24VDC (two lines, four lines),220VAC |
| Process connection | Thread, Flange,Hygiene collar |
| Protection grade | IP67 |
| Explosion-proof grade | Exd II CT6 Gb |
| Signal output | 4... 20mA/HART |
※ Note: Products can be customized according to the specific requirements of users!
