| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYTOFUL |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | carton, 40cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Product Model: | NYTOFUL | Wave Length: | 635~650nm |
|---|---|---|---|
| Laser Class: | Class II | Power Supply: | 24VDC |
| Signal Output: | 4…20mA/RS485 | Process Connection: | Thread、flange (optional) |
| Electrical Interface: | M20×1.5，½"NPT | Protection Class: | IP65, IP67, IP68 |
| High Light: | Laser Radar Level Transmitter,Explosion Proof Radar Meter,20mA Radar Level Meter |
||

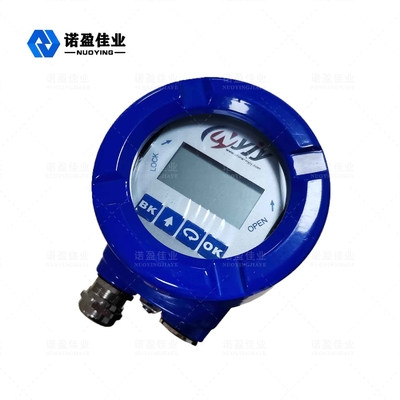

Laser Radar Meter High Precision Widely Range Explosion Grade
Laser Radar Meter Discription
NYTOFUL Lidar level meter is a new type of distance measuring equipment independently developed by the company. It has the advantages of high accuracy, fast response, large range and non-contact measurement. It is suitable for gas tank cabinet detection, piston balance and gas tank piston tilt detection occasion. The product has been inspected and approved by the National Instrument Safety Supervision and Inspection Station, and conforms to national standards. The explosion-proof mark is ExdIIBT4/ExdIICT6 GB. Users can choose this product to be used in corresponding explosive hazardous places according to regulations.
Laser Radar Meter Design Feature
◎Long distance, high precision: Range can be set freely, ranging accuracy ±1mm, range (0.001-150m).
◎Simple operation mode: Continuous measurement, measurement interval can be set.
◎Digital output and analog output: It has RS485 standard MODBUS protocol, 4-20mA output, and two groups of programmable switching output.
◎Protection grade: IP 67(against dust and moisture).
Laser Radar Meter Technical Parameter
| Typical application | Gas tank position test, piston balance test, etc |
| Product model | NYTOFUL |
| Laser class | Class II |
| Wavelength | 635~650nm |
| Power supply | 24VDC |
| Signal output | 4…20mA/RS485 |
| Measurement accuracy | ±1mm |
| Laser transmit power | <1mW |
| Process connection | Thread,flange (optional) |
| Process temperature | -30 ~ + 70℃;-30 ~ + 80℃ |
| Electrical Interface | M20×1.5,½"NPT |
| Protection class | IP65, IP67, IP68 |
※Note:The product can be customized according to the specific requirements of users.
