| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYCZ500 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | carton, 60cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Product Model: | NYCZ500 | Antenna Form: | Cable, Rod |
|---|---|---|---|
| Measuring Accuracy: | ±0.5mm | Working Current: | 4... 20mA |
| Process Temperature: | -40~+200°C | Process Pressure: | -0.1~10.0MPa |
| Process Connection: | Thread, Bracket, Flange (optional) | Protection Class: | IP 65, IP 67, IP 68(optional) |
| High Light: | Magnetostrictive Liquid Level Gauge,20mA Magnetostrictive Level Gauge,Magnetostrictive Float Level Gauge |
||

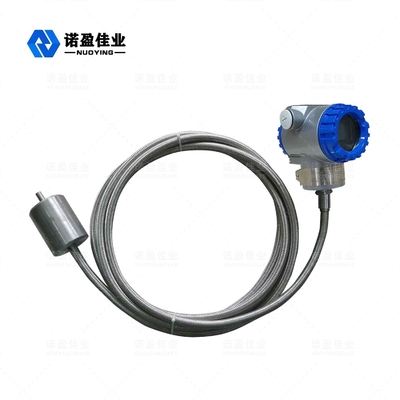

High Precision Liquid Level Meter Magnetostrictive Liquid Level Gauge Cable
Magnetostrictive Liquid Level Gauge Design Feature
◎Wider applicability, there are various probe forms, various process connection forms, various production materials, and can be customized design;
◎Strong reliability: Because the magnetostrictive liquid level gauge adopts the waveguide principle, there is no mechanical moving part, so there is no friction and no wear. The entire converter is enclosed in a stainless steel tube, and it is non-contact with the measuring medium. The sensor works reliably and has a long service life.
◎High precision: Since the magnetostrictive level meter works with waveguide pulses, the measured displacement is determined by measuring the time of the initial pulse and the end pulse, so the measurement accuracy is high, and the resolution is better than 0.01% FS. This is an accuracy that is difficult to achieve with other sensors.
Magnetostrictive Liquid Level Gauge Technical Parameter
| Typical application | Liquid, interface measurement |
| Product model | NYCZ500 |
| Antenna form | Cable, rod |
| Antenna material | 304, 316 |
| Measuring range | 0-50~5000mm(cable:25m) |
| Measuring accuracy | ±0.5mm |
| Power supply | 24VDC(two wire/four wire),220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
