Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD-803S |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | carton, 60cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Liquid, Dust | Product Model: | NYRD-803S |
|---|---|---|---|
| Antenna Material: | 304，316(optional) | Measurement Accuracy: | 0.05% ~ 0.1% F.S |
| Process Temperature: | -40~ +250 °C | Process Pressure: | -0.1~0.3MPa |
| Protection Grade: | IP65 (optional) | Power Supply: | 24VDC, 220VAC |
| High Light: | Intelligent Flange Guided Radar Level Transmitter,High Temperature Radar Level Transmitter IP65,6g Flange Radar Level Meter |
||

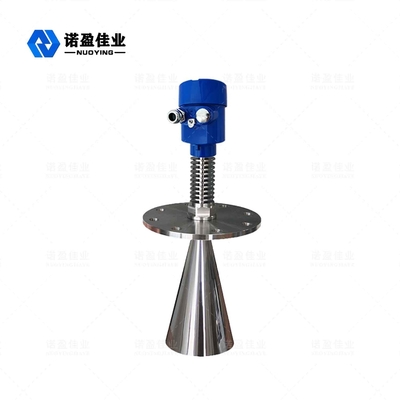

Flange Intelligent High Temperature Type 6g Radar Level Meter
6g Radar Level Meter Working Principle
By entering empty tank height E(= zero), full tank height F(= full range) and some application parameters, the application parameters will automatically adapt the meter to the measuring environment, corresponding to 4-20mA output.
6g Radar Level Meter Technical Parameter
| Typical application | Liquid dust with simple process (dielectric constant >1.8, guided wave tube type with stirring) |
| Strong dust (can be equipped with purging or dust cover) | |
| Solid (small particles, pebbles, sand and other media) | |
| Product model | NYRD803S |
| Antenna form | horn type |
| Antenna material | 304,316(optional) |
| Echo sampling | 55 times /s |
| Measurement range | 20m, 35 m |
| Measurement accuracy | 0.05% ~ 0.1% F.S |
