| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD806 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Temperature Resistant, Pressure Resistant, Slightly Corrosive Liquid | Antenna Material: | 316L(optional) |
|---|---|---|---|
| Measuring Range: | 30m | Measuring Accuracy: | 0.05%-0.1%F.S |
| Medium Temperature: | -40~+250℃ | Process Connection: | Flange, Bracket(optional) |
| Process Pressure: | -0.1~4.0MPa | ||
| High Light: | 316L Antenna Radar Level Sensor,Horn Type Radar Level Sensor,Liquid Level Measuring Instrument NYRD806 |
||

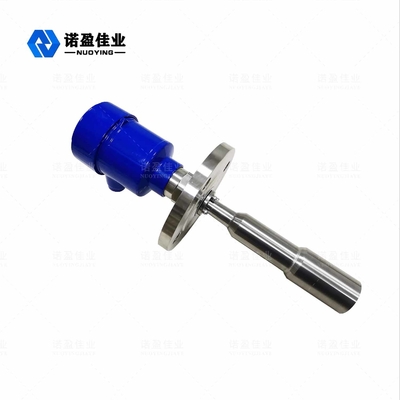

Horn Type Rader Liquid Level Transmitter 316L Antenna NYRD806
NYRD806 26GHz Rader Level Transmitter Working Principle
The radar level meter NYRD80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.
NYRD806 26GHz Rader Level Transmitter Design Feature
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
NYRD806 26GHz Rader Level Transmitter Technical Parameters
| Typical application | Temperature resistant, pressure resistant, slightly corrosive liquid |
| Antenna material | 316L(optional) |
| Measuring range | 30m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines) |
| Medium temperature | -40~+250℃ |
| Process connection | bracket, flange(optional) |
| Process pressure | -0.1~4.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 Ga |
| Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.
26GHz NYRD805 Radar Level Meter Application Field
1.Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2.Oilfield: Crude oil storage tanks, refined oil storage tanks, settling tanks, sewage tanks, drilling mud tanks, etc.
3.Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
4.Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
5.Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
6.Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
7.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
8.Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
9.Paper: Storage tower, chemical material storage silo, etc.
10.Other: Quarry, environmental protection, shipbuilding and other industries.
