Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NP-93420-IQ |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 40cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Gauge Pressure: | 0~0.1KPa~2MPa | Power Supply: | 24VDC |
|---|---|---|---|
| Diaphragm Material: | 316 L(optional) | Typical Application: | Liquid, Gas, Steam |
| Product Model: | NP-93420-IQ | Seal Gauge Pressure: | 0~7KPa~100MPa |
| Absolute Pressure: | 0~20KPa~35MPa | ||
| High Light: |
Hygienic Pressure Sensor Transmitter,Thread Flange Tank Pressure Transmitter 93420,Flange Differential Pressure Sensor |
||

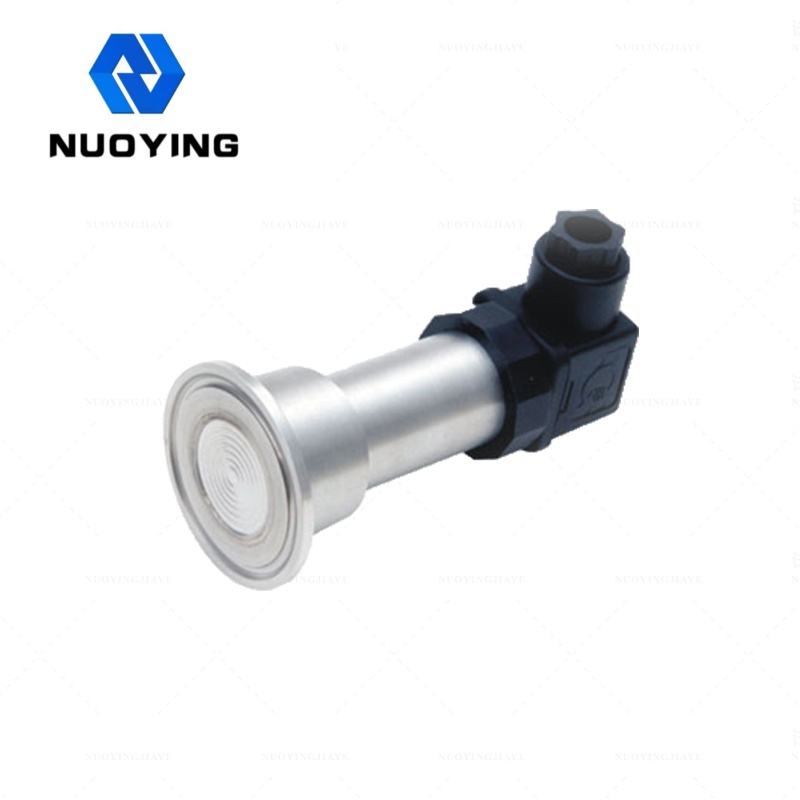

Hygienic Type 93420 Pressure Sensor Transmitter Thread Flange
Pressure Sensor Transmitter Technical Parameter
| Diaphragm material | 316 L(optional) |
| Accuracy class | Class 0.1, Class 0.2 |
| Power supply | 24VDC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Ambient temperature | -40~+85℃ |
| Process temperature | -25~+125℃(>+125℃can be customized) |
| Process connection | Thread, flange (optional) |
| Damping time | 0.1 ~ 16 s adjustable |
| Overload allowed | <2 times the rated range |
| Live display | LCD(optional) |
| Protection grade | IP67 |
| Explosion-proof grade | ExiaIICT6Ga, ExdIICT6Gb(see certificate for details) |
Pressure Sensor Transmitter Discription
NP93420 series diffused silicon pressure sensors are all use imported chips, a new generation of pressure sensors produced after careful structural design, signal processing and assembly, and testing in strict accordance with national standards. This series of products has stable output, high sensitivity and precision, and also has good temperature characteristics and strong anti-interference ability.
