| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NYRD808 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquids,dust,solids | Item No.: | NYRD808 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
| Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
| High Light: | Integrated Ultrasonic Level Gauge,Ultrasonic Water Level Gauge,M20X1.5 Ultrasonic Level Transmitter |
||
Integrated Ultrasonic level gauge water level gauge
Description Integrated Ultrasonic level gauge water level gauge
Ultrasonic liquid level meter Level Measurement, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. Liquid level meter has perfect level monitoring, data transmission and man-machine communication.Ultrasonic level sensor is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe.
Ultrasonic level transmitter is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

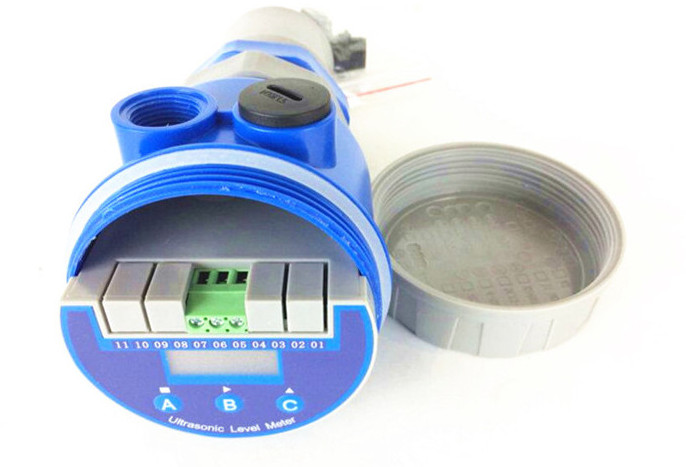

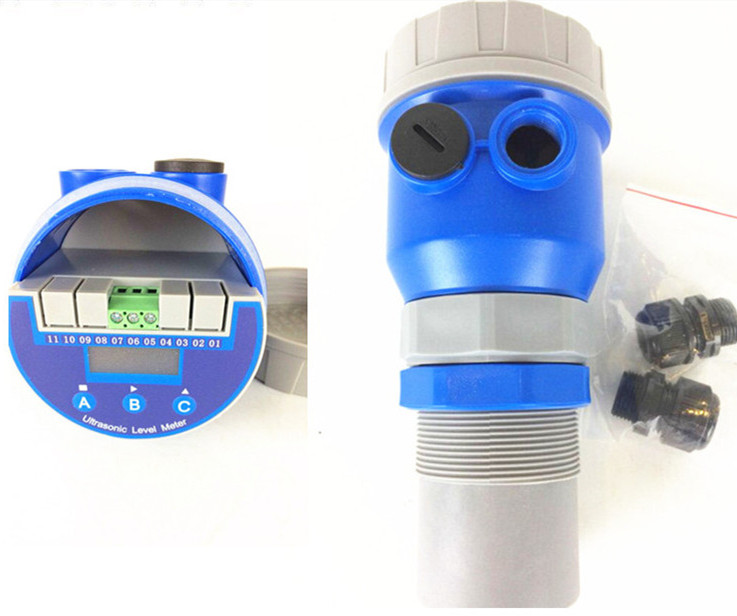

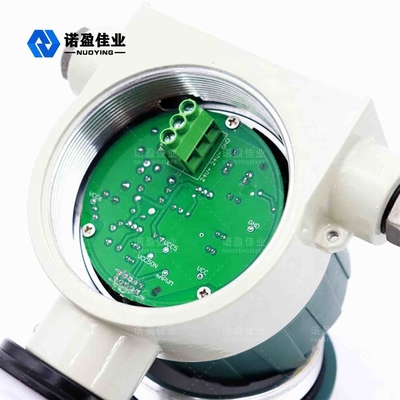

Detailed Images Integrated Ultrasonic level gauge water level gauge
Specification Integrated Ultrasonic level gauge water level gauge
| Range | 5,8,10,12,15m |
| Blind zone | <0.4-0.5m(different for range) |
| Measure error | 0.25%F.S |
| Display | LED or LCD |
| Display resolution | 1mm |
| Frequency | 20~350KHz |
| Power | 12-24VDC |
| Power consumption | <1.5W |
| Material | ABS |
| Dimension | Φ 92mm×198mm×M60 |
| Electrical interface | M20X1.5 |
| Installation | M60X2 or 61MM |
| Operating surroundings |
