| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD701,NYRD702,NYRD703,NYRD704,NYRD705 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 40cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Product Model: | NYRD701 | Antenna Form: | Cable Type, Rod Type |
|---|---|---|---|
| Antenna Material: | PTFE, 304, 316 | Measuring Range: | 6m, 30m |
| Measurement Accuracy: | 0.05% ~ 0.1% F.S | Power Supply: | 24VDC(two Wire, Four Wire), 220VAC |
| Process Temperature: | -40~ +130°C | Process Pressure: | -0.1~2.0MPa,-0.1~4.0MPa |
| High Light: |
Solid Powder Radar Level Instrument,Intelligent Radar Level Instrument,Range Radar Level Meter 6m |
||

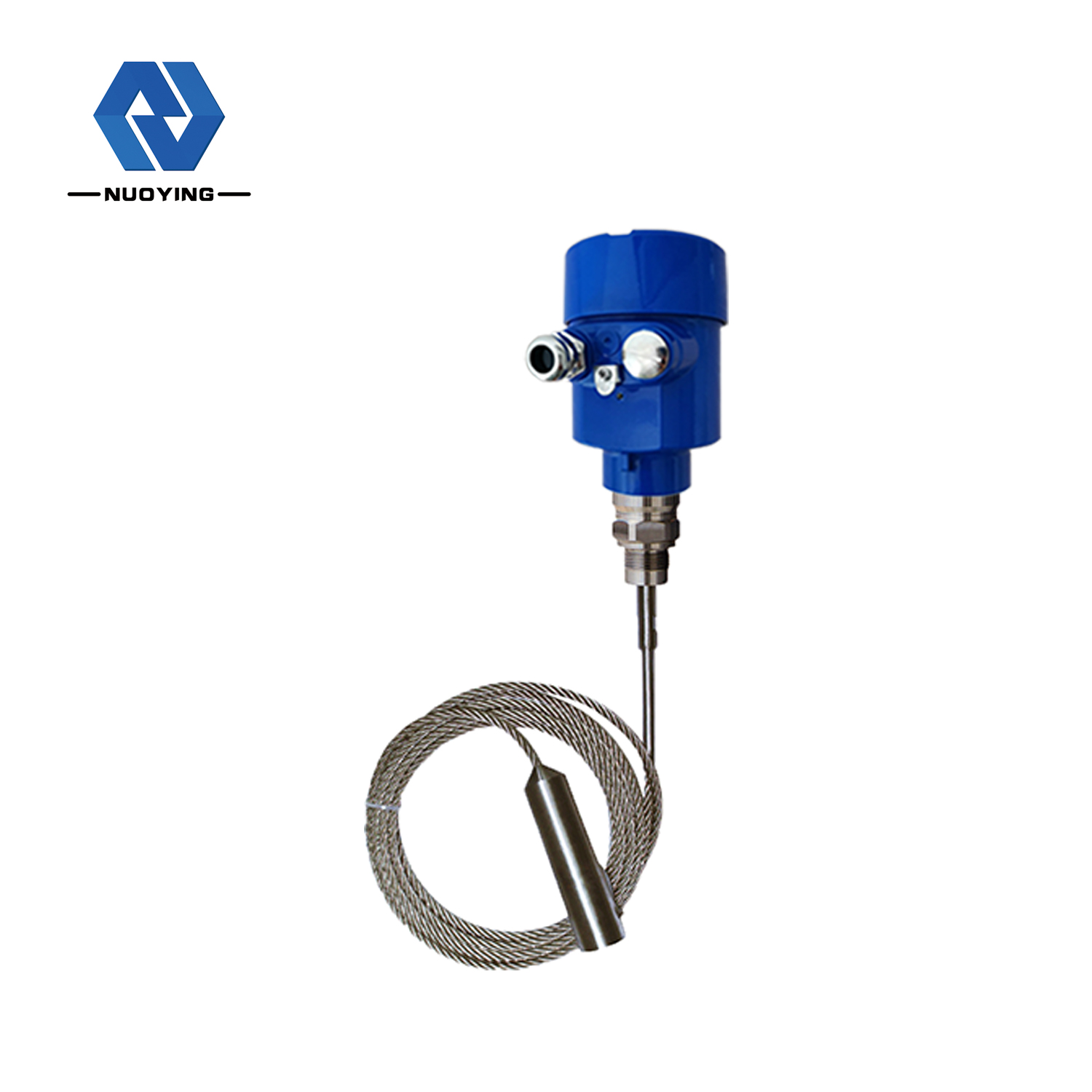

Intelligent Wide Measuring Range level Instrument Solid Powder Guided Wave Radar Level Meter
Intelligent Wide Measuring Range Level Instrument For Solid And Powder Guided Wave Radar Level Meter Working Principle
The high-frequency microwave pulse emitted by the guided wave radar propagates along the detection component (steel cable or steel rod), and encounters the measured medium. Due to the sudden change of the dielectric constant, it causes reflection, and a part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
Intelligent Wide Measuring Range Level Instrument For Solid And Powder Guided Wave Radar Level Meter Design Features
◎Guided wave radar object level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, contact measurement, high measurement accuracy, more accurate measurement. At the same time, guided wave radar is not affected by external environment such as medium temperature and adhesion.
◎The 70X series guided wave radar object level meter is suitable for various complex working conditions and applications due to the various process connection modes and detection module types. Such as: high temperature, high pressure and low dielectric constant medium.
◎Pulse working mode, low emission power, can be installed in a variety of metal, non-metal containers, no harm to human body and the environment.
Intelligent Wide Measuring RangeLevel Instrument For Solid And Powder Guided Wave Radar Level Meter Technical Parameter
| Product model | NYRD701 |
| Antenna form | Cable type, rod type, double cable type, double rod type, wave guide tube type |
| Antenna material | PTFE, 304, 316 |
| Echo sampling | 55 times /s |
| Measuring range | 6m, 30m |
| Measurement accuracy | 0.05% ~ 0.1% F.S |
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | -40~ +130°C, -40~ +250 °C,-40~ +500 °C |
| Process pressure | -0.1~2.0MPa,-0.1~4.0MPa |
| Process connection | Thread, bracket, flange, clamp (optional) |
| Electrical interface | M20×1.5 , ½ " NPT |
| Protection grade | IP 65, IP 67, IP 68 (optional) |
| Explosion-proof grade | ExiaIICT6Ga, ExdIICT6Gb(see certificate for details) |
※Note: Product can be customized according to the specific requirements of users.
