Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD-802 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | carton, 60cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Strong Dust | Product Model: | NYRD802 |
|---|---|---|---|
| Antenna Form: | Horn Type | Measurement Range: | 20m, 35 M |
| Process Temperature: | -40~ +250 °C | Process Pressure: | -0.1~4.0MPa |
| Measurement Accuracy: | 0.05% ~ 0.1% F.S | Electrical Interface: | M20×1.5 , ½ " NPT |
| High Light: | Flange Radar Level Meter,Dust Radar Level Meter 24vdc,Intelligent Radar Liquid Level Transmitter 220vac |
||

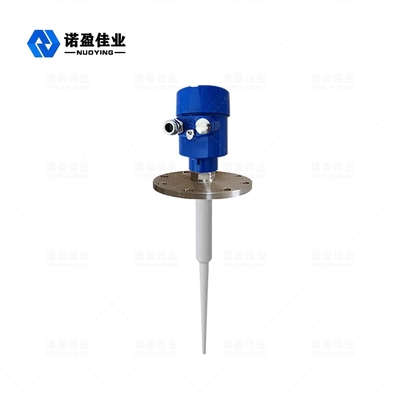

Intelligent Radar Level Meter Flange Liquid Dust Solid 24vdc 220vac
Intelligent Radar Level Meter Working Principle
Even if the working conditions are more complicated and there are false echoes, the echoes of the material level can be accurately analyzed with the latest microprocessor technology and debugging software.
Intelligent Radar Level Meter Technical Parameter
| Typical application | Liquid dust with simple process (dielectric constant >1.8, guided wave tube type with stirring) |
| Strong dust (can be equipped with purging or dust cover) | |
| Solid (small particles, pebbles, sand and other media) | |
| Product model | NYRD802 |
| Antenna form | Bar type, horn type, still-pipe |
| Antenna material | PTFE,304,316 |
| Echo sampling | 55 times /s |
| Measurement range | 20m, 35 m |
