Product Details:
Payment & Shipping Terms:
| Place of Origin: | China |
|---|---|
| Brand Name: | Nuoying JIAYE |
| Certification: | Explosion proof certificate |
| Model Number: | NYCSUL-502 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $129.00-$300.00 |
| Packaging Details: | 30cm×25cm×20cm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300 units a month |
| Measuring Range: | 20m | Measurement Accura: | 0.25%FS To 0.5%FS |
|---|---|---|---|
| Application: | Acid ,oil ,diesel ,water Liquid Or Solid Level Measurement | Power Supply: | 24VDC Or 220VAC, 12VDC Power Supply Can Be Customized |
| Process Pressure: | Normal Pressure | Display: | LCD |
| Shell Material: | Polypropylene/Aluminum | Protection Class: | IP65,IP67 |
| High Light: | IP65 Ultrasonic Level Gauge,Sludge Ultrasonic Level Gauge 24VDC,24VDC ultrasonic level indicator |
||

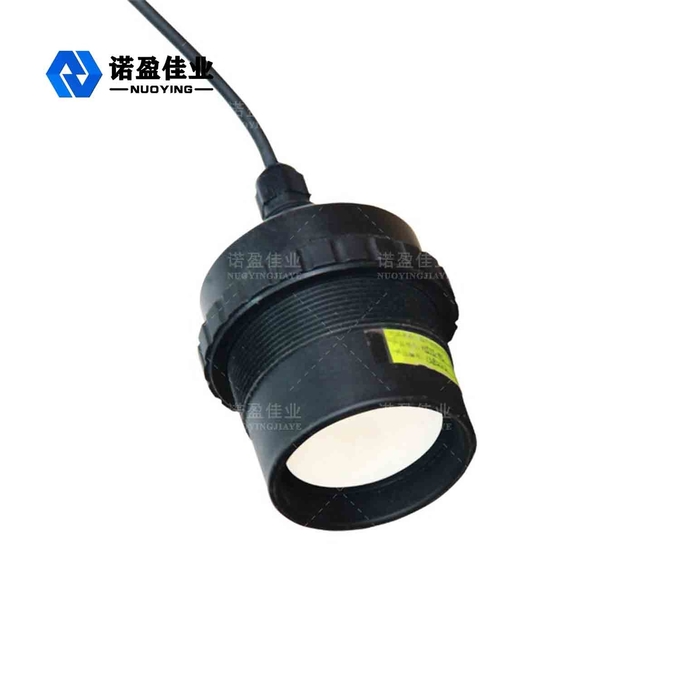

Maintenance-free Level Measurement Ultrasonic Level Transmitter for Sludge
Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process.
Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually any liquid. A complete offering of materials and mounting configurations are available to meet your application needs.
Ultrasonic Level Transmitter Technical parameters
| Range | 0 ~ 15 m |
| Blind | 0.3 m |
| Accuracy (in air) | 0.25% (full scale) |
| Display resolution | 0.01m |
| Current output |
4 ~ 20 ma,1 ~ 5 v 1 ~ 10 v, RS485 3-way NPN (can be configured to PP pulse output) Two-way relay (AC: 5 a 250 v DC: 10 a 24 v) |
| Output Resolution | 0.03% of the actual range |
| Temperature range | -40-- +70 Degrees Celsius |
| Relay Output | Upper and lower control |
| Power supply | 12 to 24 VDC or 220 Vac |
| Parameter settings | 3 felt buttons |
| Temperature compensation | Full Range Auto |
| Instrument material | ABS engineering plastics |
| Installation | Flange or bracket |
| Sound beam angle | 8o (3db) |
| Pressure range | 0.04Mp special general 0.5Mp |
Ultrasonic Level Transmitter Features
- Not reliant on chemical properties of the liquid
- No moving parts
- Simple installation with no calibration necessary
- Available in a wide variety of materials and process connections
- Remote Self-test to verify operation of the electronics and sensor
- Auto gain control, auto power control
- over-voltage/over-current protection
