| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYCSUL-503 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $150~$950/pcs |
| Packaging Details: | Carton, 30cm x 25cm x 20cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/per month |
| Model: | NYCSUL-503 | Measuring Angle: | 10° |
|---|---|---|---|
| Power Supply: | 220VAC | Process Temperature: | -20℃～+80℃ |
| Process Pressure: | Normal Pressure | Process Connection: | Thread, Flange(optional) |
| Signal Output: | 4...20mA/HART | Display: | LCD |
| High Light: | 20mA Ultrasonic Liquid Level Sensor,IP67 Ultrasonic Water Level Transmitter,Integrated Probe Ultrasonic Level Transmitter |
||

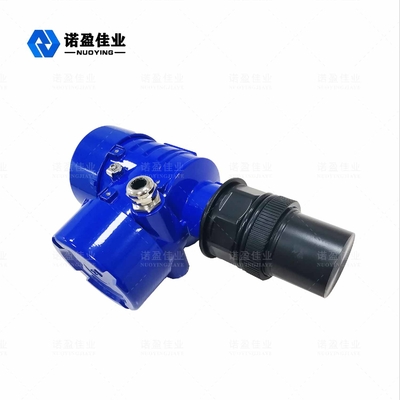

Excellent Performance IP67 NYCSUL-503 Ultrasonic Level Transmitter 4-20mA
NYCSUL-503 Ultrasonic Level Transmitter
NYCSUL-503 ultrasonic level meter is a digital level meter controlled by microprocessor. Reasonable design, excellent performance, low unit price, simple structure, convenient installation;In the measurement of ultrasonic pulse from the sensor (transducer), the sound wave reflected by the surface of the liquid is received by the same sensor, through the piezoelectric crystal converted into electrical signals, and the time between the transmission and reception of the sound wave to calculate the distance from the sensor to the surface of the liquid to be measured. Small angle probe is used in ultrasonic wave, which has high transmitting power and high sensitivity.Due to the use of non-contact measurement, the measured medium is almost unlimited, can be widely used in a variety of liquid and solid material height measurement.Any point upper and lower limit setting, alarm setting, can be used fbr liquid continuous measurement and liquid level control.
NYCSUL-503 Ultrasonic Level Transmitter Technical Parameter
| Typical application |
Liquid level |
| Frequency Range |
100KHz |
| Probe type |
Integrated |
| Probe Material |
PP/PTFE/304(optional) |
| Measuring range |
0～20m |
| Measurement accuracy |
＜0.25%(Range＜20m) |
| Measuring angle |
10° |
| Power supply |
220VAC |
| Process temperature |
-20℃～+80℃ |
| Process pressure |
Normal pressure |
| Process connection |
Thread, Flange(optional) |
| Signal output |
4...20mA/HART |
| Display mode |
Liquid level |
| Setting output |
Upper / lower limit setting |
| Display |
LCD |
| Shell material |
Polypropylene |
| Protection class |
IP67 |
| Explosion-proofgrade |
ExiaⅡCT6 Ga |
※ Note: Products can be customized according to the specific requirements of users!
