| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYING |
| Certification: | Explosion-proof certificate |
| Model Number: | NYYCUK-C |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 230USD |
| Packaging Details: | 40cm×30cm×30cm |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 200 units a month |
| Medium: | Liquid | The Temperature: | -40-130℃ |
|---|---|---|---|
| Pressure: | 0-2MPa | The Power Supply: | 24VDC |
| The Output: | SPDT | The Length Of The Sheath Maerial: | 100mm |
| The Connection: | The Screw Thread | ||
| High Light: | IP67 Tuning Fork Level Transmitter,Tuning Fork Level Transmitter SPDT,SPDT tuning fork switch |
||

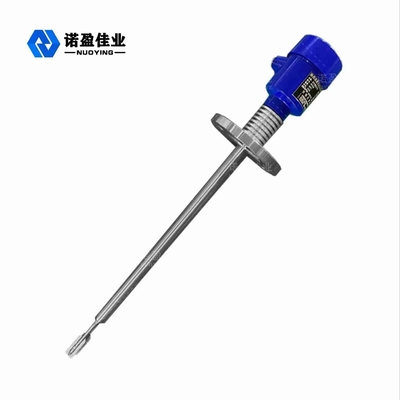

Tuning Fork Level Switch
NYYCUK tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, but also for the measurement of free-flowing, medium-density solid powders or granules. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so it does not need maintenance and adjustment, and is simple and convenient to use.
In addition, the level switch adopts foreign new technology and original imported chips, which has the advantages of long service life, stable performance, safety and reliability, and strong adaptability (different electrical parameters and density of the measured medium will not affect the measurement) , No adjustment (no on-site adjustment is required no matter what medium is measured) and maintenance-free, it is widely used in the process control of material level in metallurgy, building materials, chemical industry, light industry, grain and other industries.
Tuning Fork Level Switch Liquid Technical Parameter
| Typical Applications | Can be used with most fluids, including coating fluids, aerated fluids, and slurries |
| Fork body material | 304/316L (optional) |
| Fork length | 44mm (can be customized) |
| Power supply | 24VDC, 220VAC |
| Working temperature | Fork body -40～+180℃ Instrument -40～+80℃ |
| Process pressure | <2.0MPa |
| Process connection | Thread, Flange (optional) |
| Signal output | SPDT relay output |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga, ExibⅡCT6 Gb |
Tuning Fork Level Switch Installation Requirements
- The instrument is generally installed vertically with the fork end downwards, horizontally or inclined downwardly with the fork end (when the material has strong adhesion, it is recommended to install it vertically with the fork end downward).
- The instrument is not allowed to be installed upwards, that is, the installation method with the fork end upwards.
- Vertical or inclined installation is recommended when the material is mixed with lumps or hard particles.
- It is recommended to test the calibration sensitivity with a small sample of the medium prior to installation on the equipment. For example: immerse the meter in a medium-filled window to check the reliability of the switch.
- The actual installation is generally divided into top installation (high-level monitoring of the medium), side wall installation (high-level or low-level monitoring of the medium), and pipeline installation (air flow monitoring of the material pump).
Tuning Fork Level Switch Electrical Connections

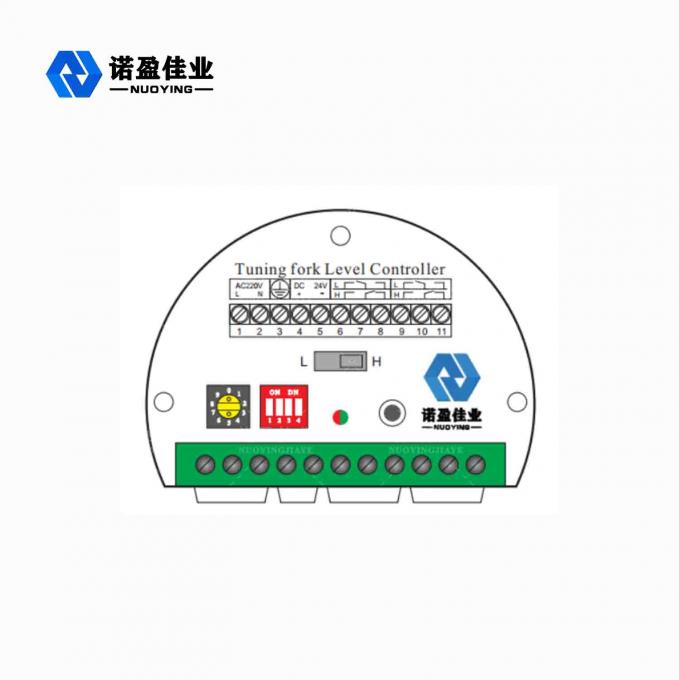

The wiring of NYYCUK tuning fork level switch is shown in the figure. No. 1 and No. 2 of the instrument terminal are AC220V AC power supply, No. 3 is the earth, No. 4 and No. 5 are DC24V DC power supply), No. 6, No. 7, No. 8, No. 9, No. 10, No. 11 are relay output terminals.
When the selection limit selection is in the L state:
Contacts 6, 7, 9, and 10 of the relay are normally closed, and contacts 7, 8, 10, and 11 are normally open. The red light is on, indicating that the tuning fork is in a vibrating state. When the material touches the plug, the plug stops vibrating, and the green light is on, the relay Turn over, normally open contacts 7, 8, 10, 11 are closed, and normally closed contacts 6, 7, 9, 10 are disconnected, indicating that the tuning fork is in a stopped vibration state.
