| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NT-93420 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 40cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Gas | Protection Grade: | IP68 |
|---|---|---|---|
| Measuring Range: | -200~+1600°C | Ambient Temperature: | - 20 ~ + 80 ℃ |
| Load Capacity: | 0~500Ω | Response Time: | ≤350ms |
| Temperature Drift: | ±0.025% / ℃ | Live Display: | LCD(optional) |
| High Light: | IP68 Steam Liquid Temperature Transmitter,Thread Temperature Transmitter Sensor 24VDC,Industrial Thermocouple Temperature Transducer |
||

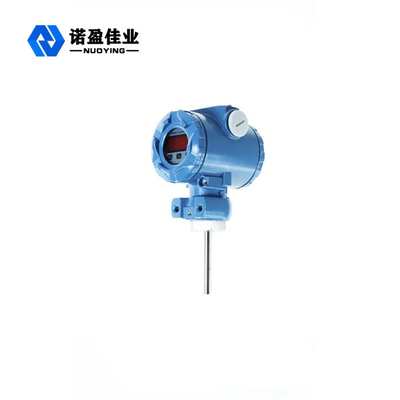

Standard Type Temperature Transmitter 24vdc Thread Ip68 Steam Liquid
Temperature Transmitter Discription
Transmitters with sensors usually consist of two parts: a sensor and a signal converter. The sensor is mainly a thermocouple or a thermal resistance: the signal converter is mainly composed of a measurement unit, a signal processing and a conversion unit (because the industrial thermal resistance and thermocouple scale are standardized, the signal converter is also called as an independent product. Transmitter), some transmitters add a display unit, and some also have Fieldbus function.
Temperature Transmitter Design Feature
◎Simple installation, a variety of temperature measurement ranges are optional;
◎Gas-liquid dual-use, any medium compatible with 316L;
◎A variety of linear analog signals are optional;
Temperature Transmitter Technical Parameter
| Power supply | 24VDC |
| Signal output |
Two wire mode 4... 20mA DC Three wire mode 1 to 5V DC |
| Ambient temperature | - 20 ~ + 80 ℃ |
| Process connection | Thread, flange (optional) |
| Load capacity | 0~500Ω |
| Response time | ≤350ms |
