| Place of Origin: | Xi'an,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate,SIL3 |
| Model Number: | NT-93420-II |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $85.0~$280.0 |
| Packaging Details: | 40*30*30cm Carton |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/pre month |
| Measuring Range: | -200-500 ℃,0~1000℃,0~1300℃,0~1600℃ | Power Supply: | 24VDC |
|---|---|---|---|
| Accuracy: | 0.5 ℃, 0.2 ℃, 0.1 ℃ (interval Setting) | Protection Grade: | IP65 |
| Stand-by Power Consumption: | <0.02mA | Working Environment: | Temperature - 20 °C ~ 60°C; Humidity <9 0% |
| Display: | LCD | Output: | 4-20mA、RS485 |
| High Light: | 20mA Temperature Transmitter Sensor,Temperature Transmitter Sensor 24VDC,24VDC temperature transmitter with display |
||
High Accuracy LCD Display 4-20mA Temperature Transmitter
High Accuracy LCD Display 4-20mA Temperature Transmitter Description:
High AccuracyTemperature Transmitter with LCD and hart 4-20ma output is a high performance device that receives thermocouple/RTD/ohm/mA input and output mA with hart communication protocol .Three internal keys to set parameter . Zero span calibration can be achieved either by hart or keypad.
High Accuracy LCD Display 4-20mA Temperature Transmitter Technical Parameters:
| Item | High Accuracy LCD Display 4-20mA Temperature Transmitter |
| Measuring Range | -200-500 ℃,0~1000℃,0~1300℃,0~1600℃ |
| Accuracy | 0.2 ℃, 0.1 ℃ |
| Display | LCD/LED |
| Power Supply | 24V |
| Stand-by Power Consumption | <0.02mA |
| Working Environment | Temperature - 20 °C ~ 60°C; humidity <9 0% |
| Explosive-proof Grade | ExdIICT6(optional) |
| Process Interface | M27×2; M20*1.5 ; flange |
| Probe Material | Stainless steel 304, 316, 316L, GH3030,GH3039,Sic-Si ceramics,SiC ceramics etc. |
High Accuracy LCD Display 4-20mA Temperature Transmitter Features:
1.Aluminum alloy case
2.Imported temperature sensor, high anti-interference
3.Saving cost of compensating lead wire and installation
4.Wide range of -200℃-1600℃.
5.Cold junction compensation and nonlinearity correcting circuit
6.Simple structure, easy to manufacture
7.Easy installation, low cost
8. Small inertia
9.Measure temperature by electrical signal, meet the request for remote measurement and control
10. Suitable for different measure request (special site or narrow spot),such as temperature measurement at point or face.

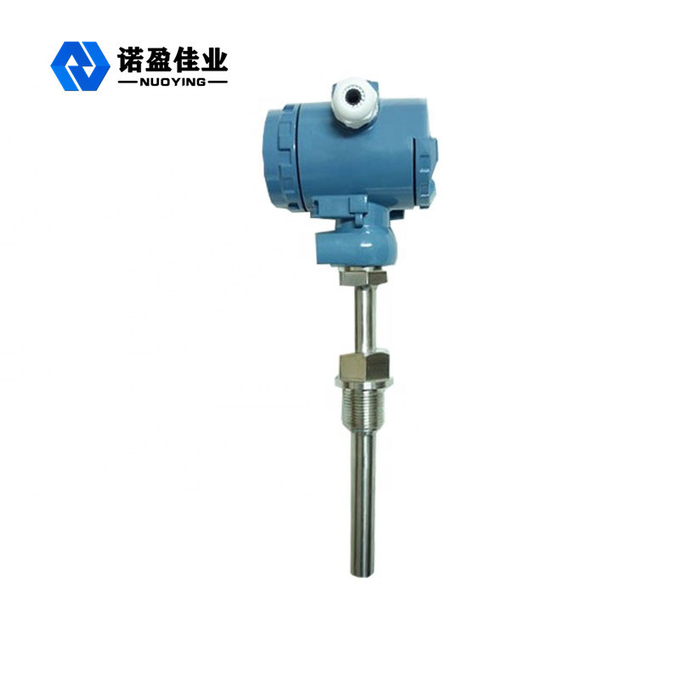

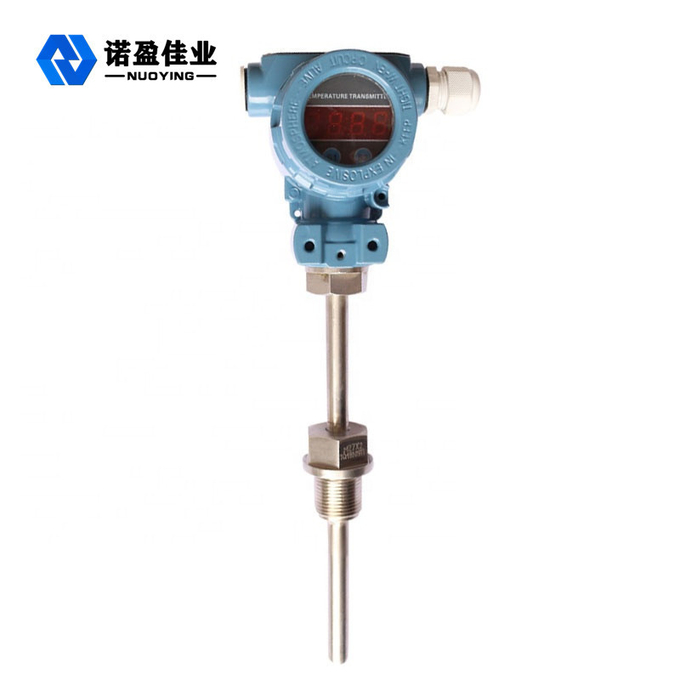

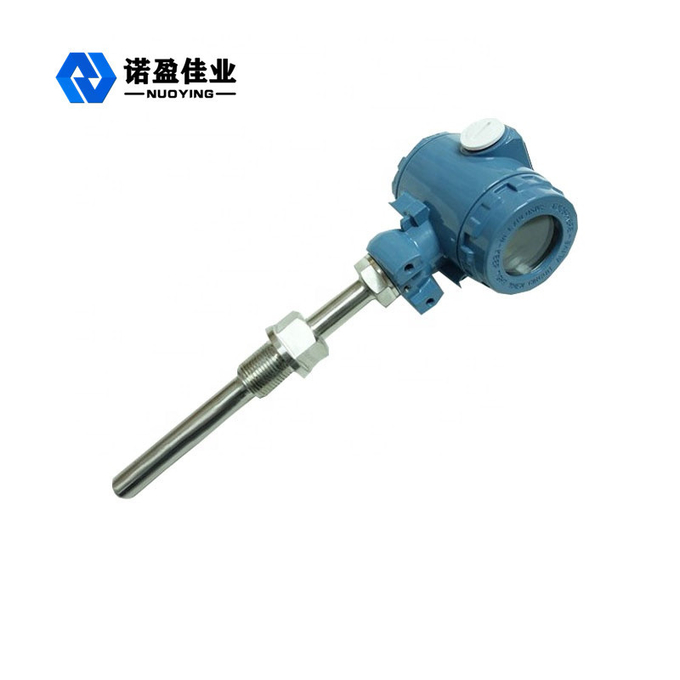

High Accuracy LCD Display 4-20mA Temperature Transmitter Details:
