| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NY3051 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquid/Gas/Steam | Product No.: | NY3051 |
|---|---|---|---|
| Measuring Range: | 0.006MPa,0.04MPa,0.25MPa,1.0MPa,2.5MPa | Filling Liquid: | Silicone Oil, Inert Oil (optional) |
| Diaphragm Material: | 316L, Ha C Alloy (can Be Customized) | Precision Grade: | Class 0.025, Class 0.075, Class 0.1, Class 0.2 |
| Power Supply: | 24VDC |

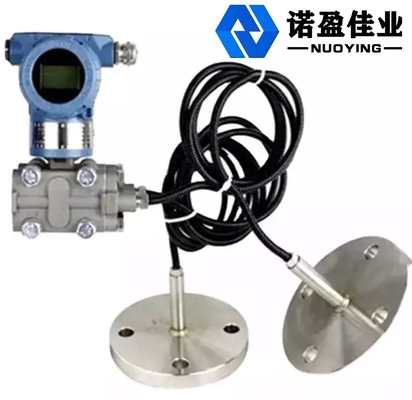

LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter
Description LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter
capacitance differential pressure transmitter can measuring liquids’ level and density of kinds of containeraccurately. Transmitter is mounted to the container with pipe flange. Be propitious to measuring medium of high temperature,high viscosity and easy to subside or strong corrosive . Diaphragm subassembly have plane and plug-in types.flange size: 3inch and 4inch; pressure grade: 50Ib and 300Ib. The membrane can select 316 stainless steel, Hastelloy or tantalum according to measure medium

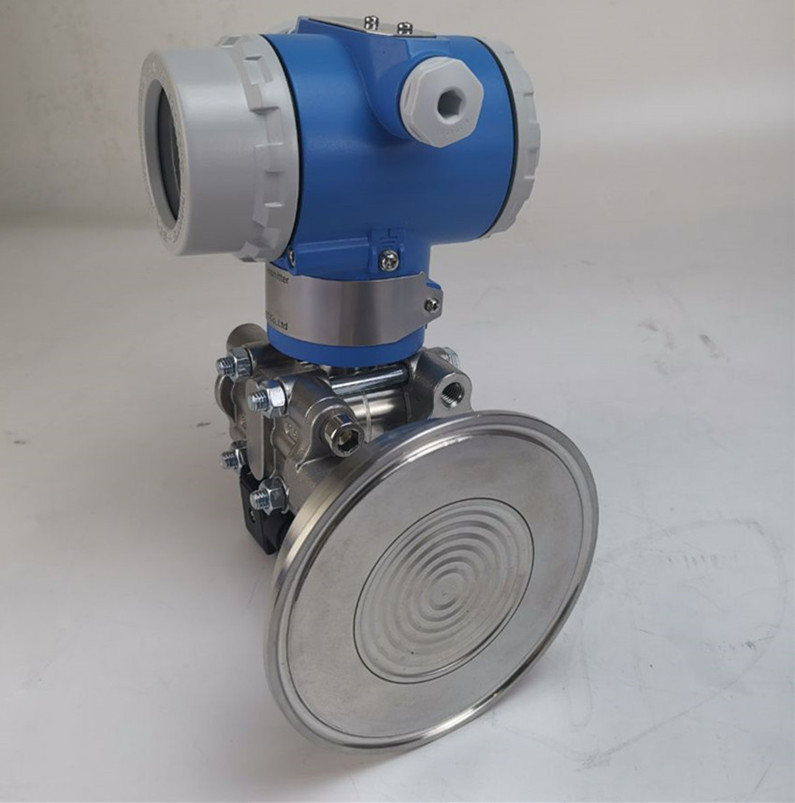

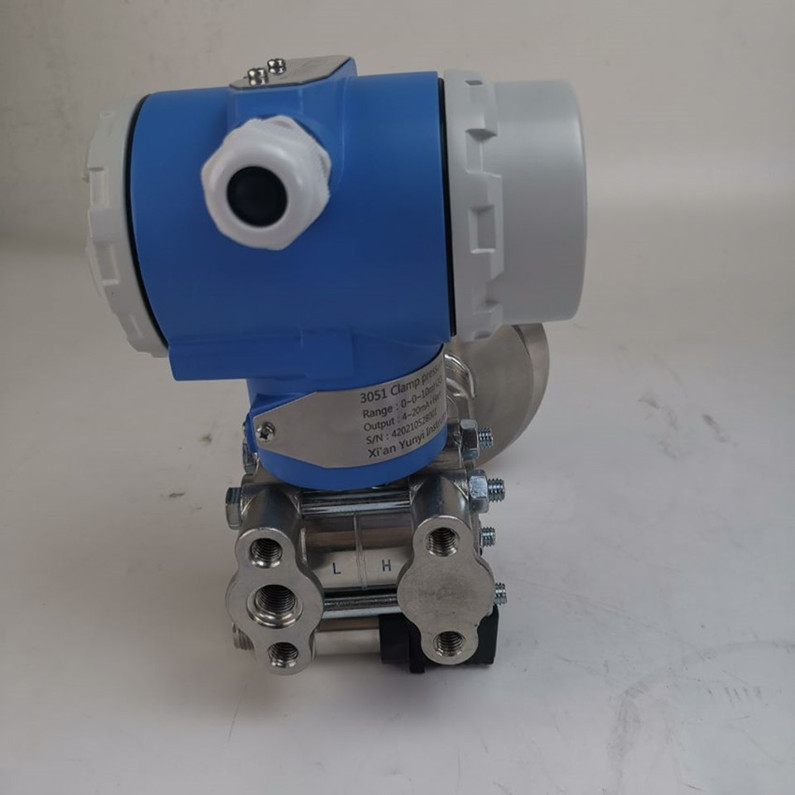

Detailed Images LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter
Specification LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter
|
Range code |
Range |
Measuring range |
|
| Min. | Max. | ||
| 4 | 0.374KPa | 37.4KPa | -37.4~37.4KPa |
| 5 | 1.868KPa | 186.8KPa | -186.8~186.8KPa |
| 6 | 6.9KPa | 690KPa | -690~690KPa |
|
Output |
Analog output: two –wire 4-20mADC |
| Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART | |
| Power supply | supply voltage 12.5-45VDC |
| Limit load |
Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
