| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYING |
| Certification: | Explosion-proof certificate |
| Model Number: | NYYCUK-B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100 to $500 |
| Packaging Details: | 36cm×18cm×15cm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300 units a month |
| Power Supply: | 24VDC | The Output: | DPDT |
|---|---|---|---|
| Medium: | Liquid Level | The Temperature: | -40-80℃ |
| Pressure: | 2MPa | Sheath Maerial: | 100mm |
| The Connection: | 1 Inch Thread | ||
| High Light: | 2MPa Tuning Fork Level Switch,Electric Vibrating Probe Level Switch,2Mpa tuning fork level transmitter |
||

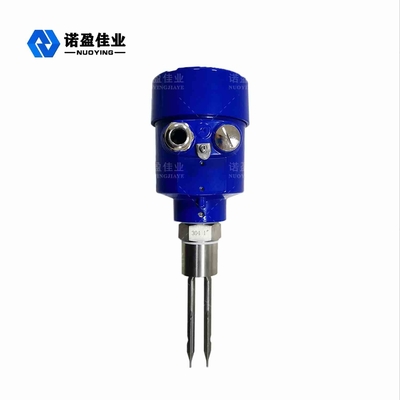

Tuning Fork Level Switch Liquid
NYYCUK tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, but also for the measurement of free-flowing, medium-density solid powders or granules. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so it does not need maintenance and adjustment, and is simple and convenient to use.
In addition, the level switch adopts foreign new technology and original imported chips, which has the advantages of long service life, stable performance, safety and reliability, and strong adaptability (different electrical parameters and density of the measured medium will not affect the measurement) , No adjustment (no on-site adjustment is required no matter what medium is measured) and maintenance-free, it is widely used in the process control of material level in metallurgy, building materials, chemical industry, light industry, grain and other industries.
Tuning Fork Level Switch Liquid Technical Parameter
| Typical Applications | Can be used with most fluids, including coating fluids, aerated fluids, and slurries |
| Fork body material | 304/316L (optional) |
| Fork length | 44mm (can be customized) |
| Power supply | 24VDC, 220VAC |
| Working temperature | Fork body -40～+180℃ Instrument -40～+80℃ |
| Process pressure | <2.0MPa |
| Process connection | Thread, Flange (optional) |
| Signal output | SPDT relay output |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga, ExibⅡCT6 Gb |
Tuning Fork Level Switch Liquid Design Features
- Tuning fork level switch has the characteristics of long service life, stable performance, safety and reliability, strong adaptability, no adjustment and free from maintenance, mainly widely used in metallurgy, building materials, chemical industry, light industry, food and other industries in the level of the process control.
- It is not affected by foam, eddy current, gas, suitable for all kinds of silo solid material level and all kinds of container liquid level fixed alarm or control.
- For solid materials, the main measurement can flow freely of medium density solid powder or particles. For example, fly ash, cement, sand, stone powder, plastic particles, salt, sugar and so on.
- For liquid materials, it mainly measures explosive and non-explosive liquids, corrosive liquids (acid and alkali solutions, etc.), high-viscosity liquids water, acid and alkali, mud, paper pulp, dyes, oils, milk, wine, beverage, etc. Tuning fork level switch is widely used, mainly for powder and small particle material with a wide density range, such as dust collector inlet and outlet pipe plug pipe detection, dust collector dust hopper material level measurement, plastic, rubber powder, flour, all kinds of food crops, food, chemical products and so on limit measurement.
- For all kinds of liquid properties: such as slurry, viscous, foamy, corrosive and other medium limit detection.
