Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | ExdⅡCT6/ExmbⅡCT6 |
| Model Number: | NY-M030 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Medium: | Corrosive, Clean, Dry Gas | Range: | 300-3000SLPM |
|---|---|---|---|
| Accuracy: | ±1％of Full Scale | Response Time: | Better Than 3s |
| Preheating Time: | ＜15min | Calibration Conditons: | 0℃&101325Pa |
| Operating Temperature: | 5 To 55℃ | Maxmium Working Pressure: | 3 MPaG |
| High Light: | Nitrogen Gas Biogas Mass Flow Meter,Biogas Mass Flow Meter 20mA |
||

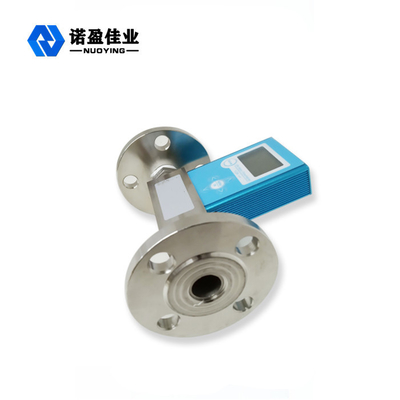

NY-M030 Series mass flow meter air nitrogen oxygen flowmeter better than 3s
Product Description
Description of the 4-20mA nitrogen gas mass flow meter:
4-20mA nitrogen gas mass flow meter are specially designed for small pipe flow monitoring and control. The series can measure gas flow in a pipe diameter as small as 3 mm,but not over 19 mm. With the self-flow conditioning feature of the MEMS sensor package, the 4-20mA nitrogen gas mass flow meter feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow meters in this application scope. The accuracy of the 4-20mA nitrogen gas mass flow meter are generally ±(1.5+0.2FS)% or better depending on the requests. The 4-20mA nitrogen gas mass flow meter can work at an environment of -20 to 60 C and pressure up to 1.5 MPa.
