Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD-SL |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Liquid | Product Model: | NYRD-SL |
|---|---|---|---|
| Antenna Form: | Horn Type | Antenna Material: | 304(optional) |
| Measuring Range: | 10m, 20m(optional) | Antenna Size: | Small |
| Process Temperature: | -40~+130℃ | Process Pressure: | - 0.1 ~ 0. 3MPa(optional) |
| High Light: | Water Tank Radar Level Transmitter,Horn Type Radar Level Meter Noncontact,26ghz Radar Level Switch |
||

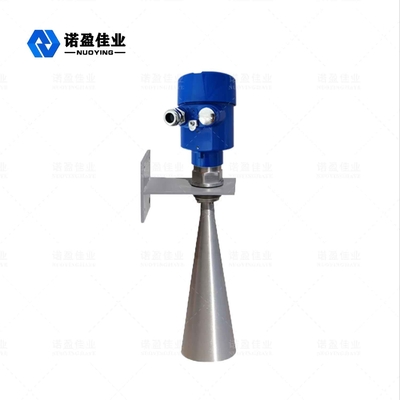

Tank Water Treatment Noncontact 26ghz High Frequency Radar Level Meter
26ghz High Frequency Radar Level Meter Desiqn Feature
◎Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interference.
◎The measurement blind area is smaller, and good results can be achieved for small tank measurement.
◎High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
26ghz High Frequency Radar Level Meter Working Principle
After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal.
