| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NP-93420-IIC |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $100~$350/pcs |
| Packaging Details: | Export standard packing |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/per month |
| Typical Application: | Gas And Liquid That Compatible With SS316 | Accuracy: | 0.25%F·S |
|---|---|---|---|
| Range: | -95kPa～60MPa | Diaphragm Materia: | 316L |
| Temperature Coefficient: | ≤0.02%/℃ | Process Temperature: | -10～+80℃ |
| Process Connection: | Thread,flange (optional) | Power Supply: | 12.5V-36V, 24VDC |
| High Light: |
Aluminum Pressure Sensor Transmitter 60MPa,Thread Liquid Pressure Transmitter,Gas Differential Pressure Transmitter 316L |
||

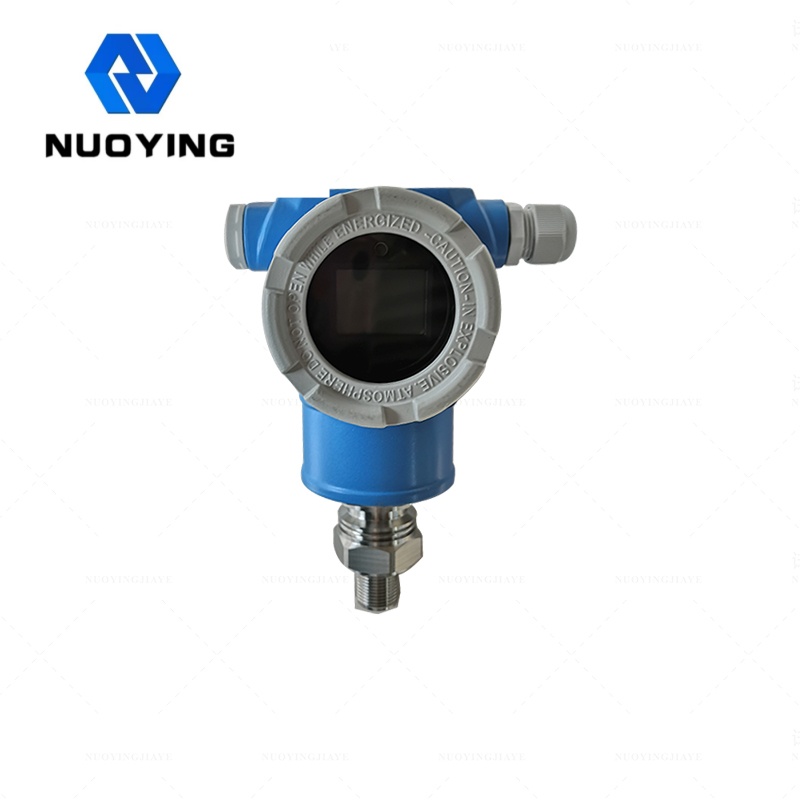

High Stability Aluminum NP-93420-IIC Pressure Sensor Transmitter High Accuracy
NP-93420-IIC Pressure Sensor Transmitter
Process pressure via the pressure sensor to change pressure signal to electrical signal, through the difference normalized amplifier,4 ~20mA standard current signal output, two wire, or 0 ~ 10 mADC standard current signal output, three wire system. the output amplifier amplification, then via current voltage (V/I) converter, transformed as 4-20mA or 0-10 mADC standard current signal.Good cost performance.Widely used in petroleum, chemical industry, metallurgy, electric power, light industry, building materials, medicine, environmental protection, scientific research, and other enterprises and institutions, Reliable mechanical protection, explosion protection, suitable for all kinds of severe environments.realize to test the process fluid pressure, and is suitable for various occasions all-weather environment and all kinds of corrosive liquid.Small volume, light weight, installation/ adjustment, easy to use.
NP-93420-IIC Pressure Sensor Transmitter Technical Parameter
| Typical application | gas and liquid that compatible with SS316 |
| Accuracy | 0.25%F·S |
| Range | -95kPa～60MPa |
| Diaphragm materia | 316L |
| Temperature Coefficient | ≤0.02%/℃ |
| Process temperature | -10～+80℃ |
| Storage temperature | -40～+125℃ |
| Full Range Temperature Coefficient | ≤0.02%/℃ |
| Relative Humidity | ＜95% |
| Process connection | Thread,flange (optional) |
| Overload Limit | 150%-200% |
| Signal output | 4～20mADC two wire |
| Power Supply | 12.5V-36V, 24VDC |
| Load Resistance | ≯750Ω |
| Mechanical Protection | IP65 |
| Explosion Class: iaⅡCT5 | ExiaⅡ CT5 |
Note: Products can be customized according to the specific requirement of users!
Pressure Sensor Transmitter Characteristics
- High accuracy, high stability. Except import original sensor has been used laser correction, for temperature drifting, it is also subtly compensated, therefore in the working temperature range, the nonlinear for transmitter is small, and temperature is stable.
- Good cost performance.
- Reliable mechanical protection, explosion protection, suitable for all kinds of severe environments.
- 4 ~20mA standard current signal output, two wire, or 0 ~ 10 mADC standard current signal output, three wire system.
- Can be used for measuring viscous, crystallization and corrosive medium.
- Small volume, light weight, installation/ adjustment, easy to use.
Pressure Sensor Transmitter Physical Properties
- Isolate diaphragm: SS316 or ceramics diaphragm
- Wetted parts: stainless steel
- Sealing ring: NBR
- Housing: Aluminium alloy
- Body plating: epoxy resin
- Process connection type: M20×1.5 male ,1/2NPT male
- Electric connection: cable hole is 8
