Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYCFQ-UK |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $116.739 to $388.575/pcs |
| Packaging Details: | Carton,Export Standard Packaging |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Product Models: | NYCFQ-UK | Typical Application: | Liquid Level |
|---|---|---|---|
| Process Pressureterface: | -0.1～2.0MPa | Float Material: | F4, PP, 304, PTFE (optional) |
| Length Of Probe Rod: | 200~6000mm (customizable) | Ambient Temperature: | -40～+80℃ |
| Process Temperature: | -40~+130℃ | Process Connection: | Bracket, Flange (optional) |

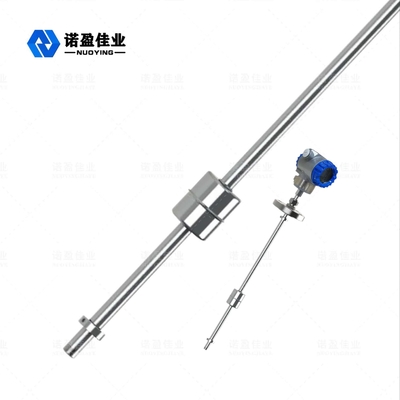

NYCFQ-UK Customized Design Widely Applicable Magnetic Float Level Meter
NYCFQ-UK Magnetic Float Level Meter Overview
NYCFQ series magnetic float level gauge is designed based on buoyancy and magnetic principle. The magnetic float level gauge is equipped with one or more reed tubes in a closed non-magnetic conduit, and then the conduit passes through one or more hollow floats with annular magnets inside. The annular magnetic float will drive the floating ball to move up and down along with the rise or fall of the liquid, so that the reed tube in the non-magnetic conductive tube will have a pull in or break action, output the resistance signal corresponding to the liquid level, and convert it into a 4-20mA standard signal output, and can also send a contact on (off) conversion signal.
NYUHZ Magnetic Flap Level Meter Technical Parameters
|
Typical Applications
|
Liquid level measurement
|
|
Product Model
|
NYCFQ-UL,NYCFQ-UK
|
|
Float Material
|
F4, PP, 304, PTFE (optional)
|
|
Length of Probe Rod
|
200~6000mm (customizable)
|
|
Ambient Temperature
|
-40～+80℃
|
|
Process Temperature
|
-40~+130℃
|
|
Process Pressure
|
-0.1～2.0MPa
|
|
Process Connection
|
bracket, flange (optional)
|
|
Medium Viscosity
|
<0.05Pa·S
|
|
Medium Density
|
0.5~2.0g/cm3
|
|
Output Signal
|
4-20mA,SPDT
|
|
Protection Grade
|
IP65, IP67, IP68 (optional)
|
|
Explosion Proof
Grade
|
ExdⅡCT6Gb (see certificate for details)
|
Note: The products can be customized and designed according to the specific requirements of users!
NYCFQ-UK Magnetic Float Level Meter Design Features
◎ Customized design, multi-point control, wide application range;
◎ Simple structure, convenient installation and low maintenance cost;
◎ Stable and reliable performance, strong lightning protection and anti-interference capability;
◎ Multiple probe forms, suitable for various complex working conditions;
◎ Different floating ball materials can be selected according to different media density.
