| Place of Origin: | Xi'an Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYCSUL-501 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $134.379 to $167.976/pcs |
| Packaging Details: | Carton,Export Standard Packaging |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Antenna Material: | PP、PVC、PTFE、304 | Typical Application: | Liquid (no Agitation, Foam, Volatilization, Etc.) |
|---|---|---|---|
| Process Pressureterface: | - 0.1~0.1MPa (normal Pressure) | Temperature Accuracy: | -20～+70℃ |
| Product Models: | NYCSUL-501 | Probe Type: | Integrated |
| Setting Output: | Upper Limit Setting, Lower Limit Setting | Measuring Range: | 0-20m |

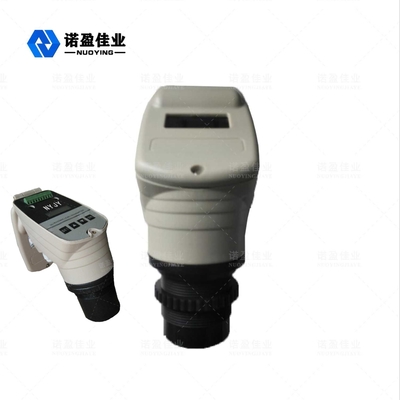

NYCSUL-501 Excellent Performance Ultrasonic Level Meter
NYCSUL-501 Ultrasonic Level Meter Working Principle
The ultrasonic level gauge is installed on the top of the container. Under the control of the electronic unit, the probe sends a beam of ultrasonic pulse to the object to be measured. The sound wave is reflected by the object surface, and part of the reflected echo is received by the probe and converted into electrical signals. The level change is determined according to the time difference between the transmission of the ultrasonic wave and the re reception of the ultrasonic wave and the known sound speed. The microwave signal is processed by the electronic device, Finally, it is converted into electrical signals related to the material level.
| Typical Application | liquid (no agitation, foam, volatilization, etc.) |
| Product Models | NYCSUL-501,NYCSUL-502,NYCSUL-503 |
| Probe Type | integrated, split, explosion-proof, anti-corrosion and explosion-proof |
| Antenna Material | PP,PVC,PTFE,304 |
| Measuring Range | 0~20m (integrated), 0~40m (separated), |
| Measurement Accuracy | <0.25% (measuring range<20m), <0.5% (measuring range>20m) |
| Process Temperature | -20～+70℃ |
| Process Pressure | - 0.1~0.1MPa (normal pressure) |
| Process Connection | thread, flange (optional) |
| Power Supply | 24VDC |
| Signal Output | 4...20mA/HART/RS485/Modbus… |
| Display Mode | liquid level and distance (empty height) |
| Setting Output | upper limit setting, lower limit setting |
| Protection Grade | IP 65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia ll CT6 Ga, Exib II BT6 Gb (see certificate for details) |
Note: The products can be customized and designed according to the specific requirements of users!
NYCSUL-501 Ultrasonic Level Meter Design Features
◎ Reasonable design, excellent performance, simple structure, convenient installation, etc;
◎ Small angle probe is used for ultrasonic wave, with high transmitting power and high sensitivity;
◎ The upper and lower limit setting and alarm setting at any point can be used for continuous liquid measurement and liquid level control.
