| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYCSUL-502 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $100~$250/pcs |
| Packaging Details: | Carton, 30cm x 25cm x 20cm |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Model: | NYCSUL-502 | Medium Temp: | -45°C~ 95°C |
|---|---|---|---|
| Relay Specification: | 5A 250VAC/30VDC | Current Output: | 4~20mA |
| Output Load: | 0~600Ω | Detecting Period: | 1S |
| Acousticwave Beam Angle: | 8°(3db) | Pressure Range: | ±0.3MP |
| High Light: | Split Ultrasonic Level Transmitter,Light Weight Liquid Level Transmitter 20mA,Hart Ultrasonic Level Gauge |
||

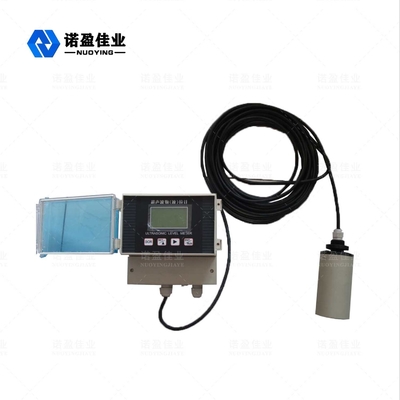

Split Type NYCSUL-502 Ultrasonic Level Transmitter With Hart Protocol Light Weight
NYCSUL-502 Ultrasonic Level Transmitter
The NYCSUL Ultrasonic Level Measurement is mounted on top of the vessel. Under the control of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. The sound wave is reflected by the surface of medium, a part of reflection echo is received by the probe and converted into electrical signal. Automatic power adjustment, gain control, temperature compensation.The electronic unit detects the time and calculates out the easured distance according to the known sound velocity.Special echo processing technology, on-site failure can be identified for the cause of failure, convenient maintenance.It is widely used in open pipe, oil tank, pump station, water tower, dam,open channel, difference between levels etc.Various output forms: programmable relay output, high precision 4-20mA current output, RS-485, RS-232 digital communication output, wireless GPRS output, etc.
NYCSUL-502 Ultrasonic Level Transmitter Technical Parameter
| Product Name | Ultrasonic Level Sensor |
| Measuring Range |
20~30m(liquid); 10~15m(solid) |
| Blind Area | 0.6m~0.8m |
| Precision | 0.2% of the full measuring range(in the air) |
| Display Resolution | 1cm |
| Current Output | 4~20mA |
| Output Resolution | 0.03% of full measuring range |
| Output Load | 0~600Ω |
| Relay Output | top limit and lower limit control |
| Relay Specification | 5A 250VAC/30VDC |
| Parameter Set | 3 sensing buttons |
| Medium Temp | -45°C~ 95°C |
| Detecting Period | 1S |
| Installation | flange |
| Acousticwave Beam Angle | 8°(3db) |
| Pressure Range | ±0.3MP |
※ Note: Products can be customized according to the specific requirements of users!
