| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYCSUL-502 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $130~$350/pcs |
| Packaging Details: | Carton, 30cm x 25cm x 20cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Model: | NYCSUL-502 | Temperature Range: | -40℃~+70℃ |
|---|---|---|---|
| Installation: | Flange Or Bracket （optional） | Range: | 0 ~ 20m |
| Current Output: | 4 ~ 20 MA | Power Supply: | 24 VDC |
| Blind: | 0.3 M | Display Resolution: | 0.01m |
| High Light: | IP65 Ultrasonic Level Gauge,Sludge Ultrasonic Level Gauge,24VDC Ultrasonic Liquid Level Gauge |
||

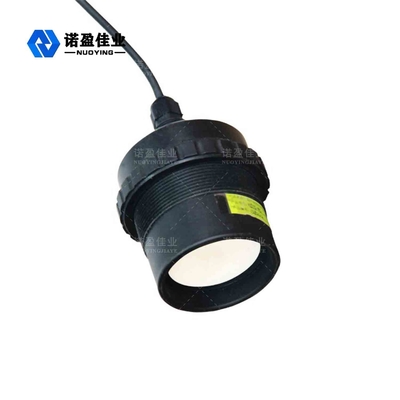

NYCSUL502 IP65 Ultrasonic Level Gauge For Sludge 24VDC Maintenance Free
NYCSUL502 IP65 Ultrasonic Level Gauge
Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process.Not reliant on chemical properties of the liquid.Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually any liquid.Simple installation with no calibration necessary. A complete offering of materials and mounting configurations are available to meet your application needs.Available in a wide variety of materials and process connections.Remote Self-test to verify operation of the electronics and sensor.
NYCSUL502 IP65 Ultrasonic Level Gauge Technical Parameters
| Range | 0 ~ 20m |
| Blind | 0.3 m |
| Accuracy (in air) | 0.25% (full scale,Range＜20m) |
| Display resolution | 0.01m |
| Current output |
4 ~ 20 mA |
| Output Resolution | 0.03% of the actual range |
| Temperature range | -40℃~+70℃ |
| Relay Output | Upper and lower control |
| Power supply | 24 VDC |
| Parameter settings | 3 felt buttons |
| Temperature compensation | Full Range Auto |
| Instrument material | ABS engineering plastics |
| Installation | Flange or bracket (optional) |
| Sound beam angle | 8o (3db) |
| Pressure range | 0.04Mp special general 0.5Mp |
Note: Products can be customized according to the specific requirement of users!
